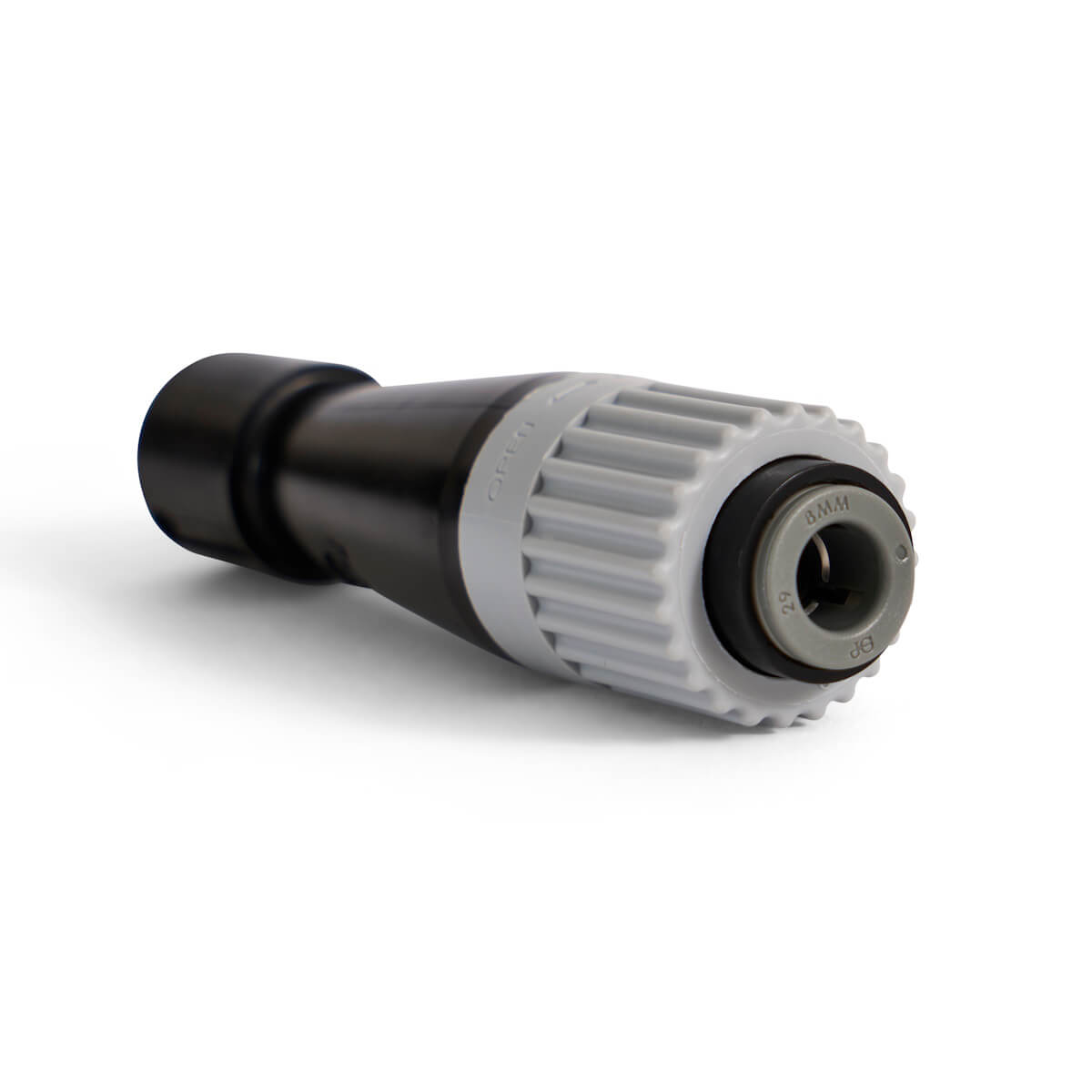

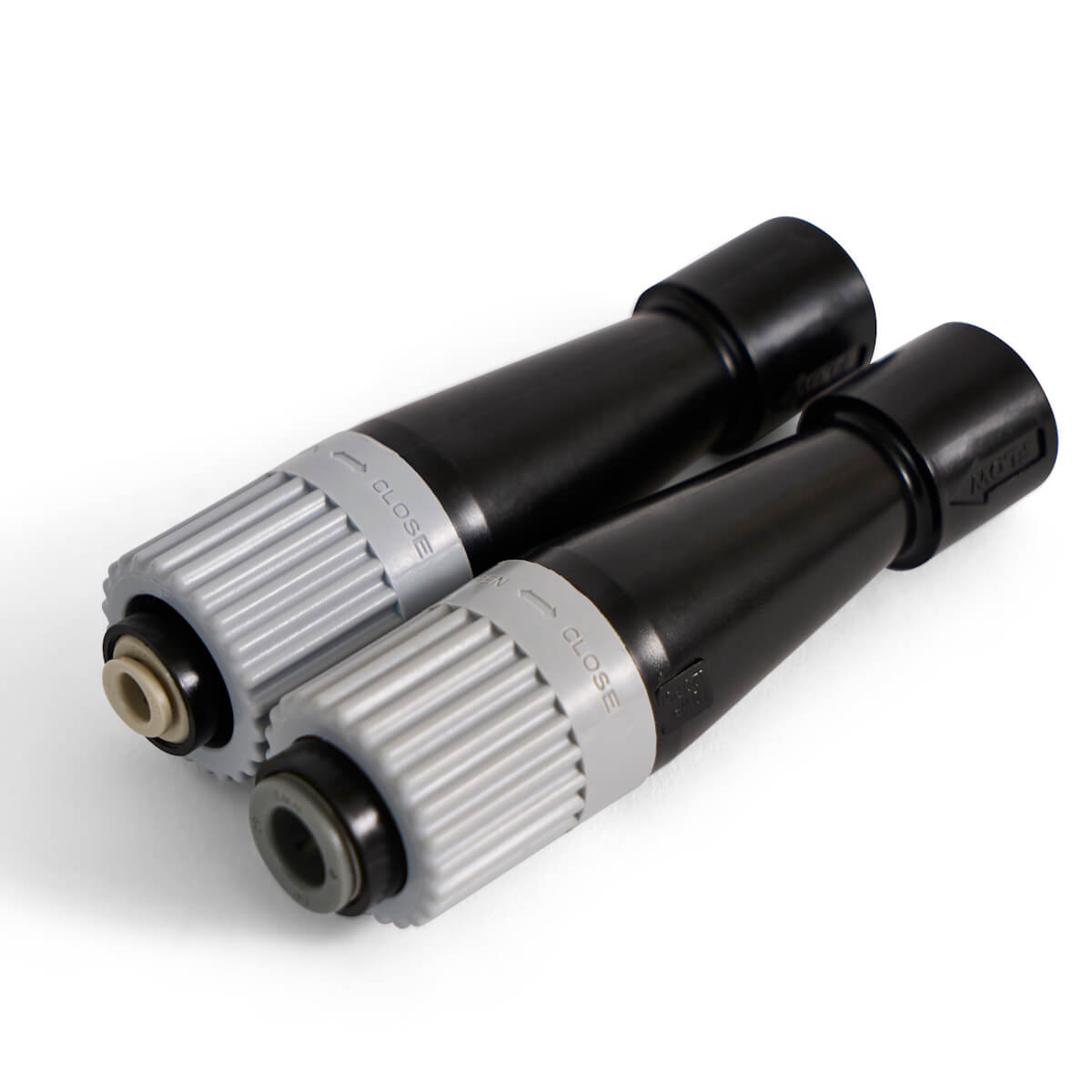

Beer Flow Controller / Restrictor – 3/8" Inlet x 3/16" Outlet

Beer Flow Controller / Restrictor – 3/8" Inlet x 3/16" Outlet

This Beer Flow Controller / Restrictor provides adjustable control over the speed of beer and other compatible draught products through the dispense line.

Featuring a 3/8" push-fit inlet and 3/16" push-fit outlet, the controller is designed for installation in the product line, commonly beneath a beer font or close to the dispense point.

Turn the adjustment collar to increase or decrease the restriction, allowing the dispense flow rate to be fine-tuned without changing the beer line.

Adjustable Beer Flow Restrictor

Correct flow rate is an important part of a properly balanced draught beer system.

This adjustable beer flow controller adds variable resistance to the product line, allowing the pouring speed to be adjusted at the dispense point.

It can be particularly useful where additional control is required alongside the resistance already provided by the beer line.

3/8" Inlet to 3/16" Outlet

The controller features:

• Inlet: 3/8" Push Fit
• Outlet: 3/16" Push Fit

This configuration allows the controller to connect a 3/8" product line to 3/16" reducer line, while also providing adjustable flow restriction.

Always check the pipe sizes used in your draught system before ordering.

Under-Font Installation

The compact design makes the controller suitable for fitting beneath a beer font, tower or bar counter.

This keeps the unit out of sight during normal service while allowing access to the adjustment collar when the dispense flow needs to be altered.

Key Features

• Adjustable beer flow controller
• Adds variable restriction to the product line
• Helps control draught dispense speed
• Twist adjustment collar
• 3/8" push-fit inlet
• 3/16" push-fit outlet
• Connects 3/8" product pipe to 3/16" reducer line
• Suitable for under-font installation
• Compact in-line design
• Suitable for professional and home draught systems

Suitable For

This Beer Flow Controller / Restrictor is suitable for:

• Draught beer systems
• Draught cider
• Beer fonts
• Beer towers
• 3/16" reducer line installations
• Under-counter dispense systems
• Pubs and bars
• Breweries
• Taprooms
• Mobile bars
• Home bars
• Compatible chilled draught products

Beer Flow & 3/16" Reducer Line

3/16" beer line creates significantly more resistance than larger diameter product pipe and is commonly used near the dispense point to help control flow.

The amount of 3/16" reducer line required will depend on the individual installation, including gas pressure, product temperature, carbonation and required dispense speed.

The adjustable flow controller provides an additional method of fine-tuning this resistance.

Important – Beer Flow & Foaming

A flow controller can help fine-tune dispense speed by adding resistance, but it will not correct every cause of excessive foam or poor dispense.

Beer temperature, gas pressure, carbonation, line diameter, line length and cooling all affect dispense performance.

The complete draught system should therefore be correctly balanced rather than relying solely on the flow controller.

Please Note

Product style and appearance may vary depending on current stock.

The connection sizes and intended function remain as stated.

Specifications

• Product: Beer Flow Controller / Restrictor
• Inlet: 3/8" Push Fit
• Outlet: 3/16" Push Fit
• Adjustment: Manual Flow Control Collar
• Installation: In-Line / Under Font
• Function: Adjustable Product Line Restriction
• Application: Draught Drinks Dispense
