Cask Cooling Cradle | Horizontal 9 Gallon Firkin Cask Ale Cooler

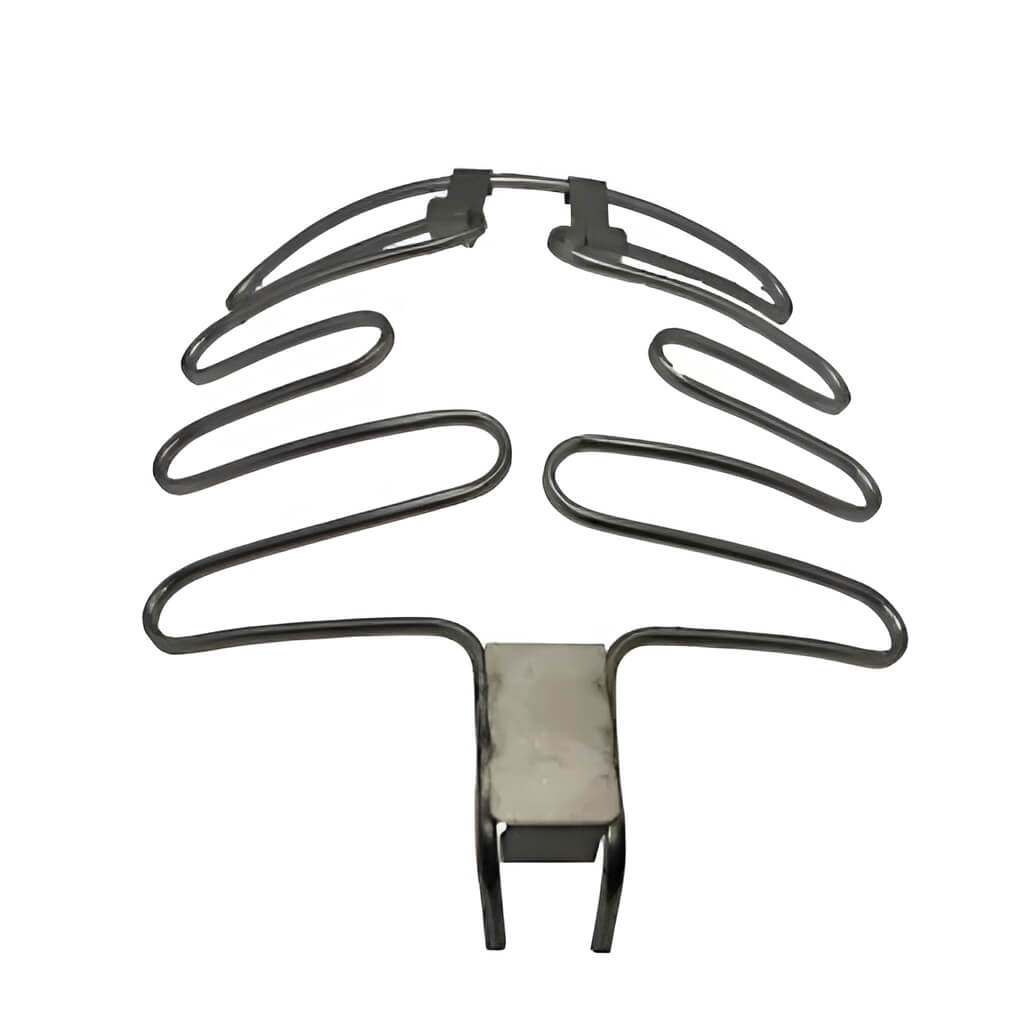

The Cask Cooling Cradle for 9 gallon casks is a stainless steel saddle-style cooling coil designed to help maintain the correct serving temperature of cask conditioned real ale.

Designed to sit over a standard 9 gallon firkin, the cooling cradle circulates chilled water around the cask to provide effective temperature control during service. It is particularly useful for back-bar cask ale installations, beer festivals, events and locations where traditional cellar cooling is not available.

For best results, the cask cooling cradle should be used underneath a suitable insulated cask cooling jacket, helping retain the cold around the cask and maintain a more consistent temperature.

9 Gallon Cask Ale Cooling Cradle

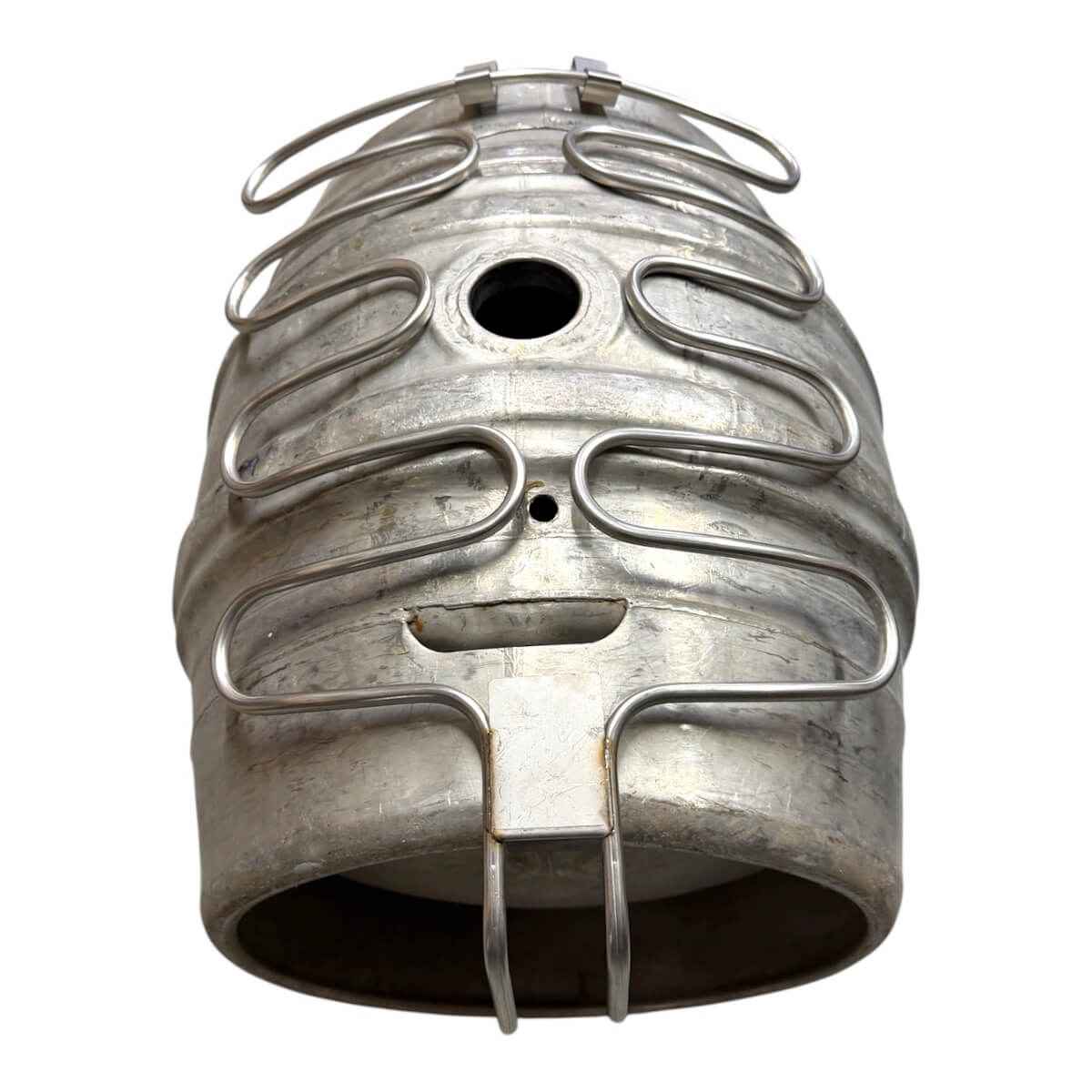

The horizontal saddle design allows the cask cooler to sit directly over a 9 gallon firkin while chilled water from a suitable remote cooler or recirculation system passes through the stainless steel tubing.

This removes heat from around the cask and helps maintain the ale at the required temperature without the beer itself passing through a product cooling coil.

Key Features

• Cask cooling cradle for 9 gallon firkins
• Designed for horizontal / laydown casks
• Suitable for traditional cask conditioned real ale
• Stainless steel saddle cooling coil
• Sits directly over a standard 9 gallon cask
• 5/16" pipe connections
• Connects to a suitable chilled water circulation system
• Helps maintain cask ale serving temperature
• Ideal for back-bar cask ale dispense
• Suitable for beer festivals and temporary bars
• Can be used where conventional cellar cooling is unavailable
• Designed for use beneath an insulated cask cooling jacket

Specifications

Product: Cask Cooling Cradle
Cask Size: 9 Gallon / Firkin
Cask Position: Horizontal / Laydown
Material: Stainless Steel
Connections: 5/16" Pipe
Cooling Method: Chilled Water Circulation
Application: Cask Ale Temperature Control

Please note: Suitable push-fit fittings are required to connect the 5/16" pipework to your cooling system.

How Does a Cask Cooling Cradle Work?

The cask ale cooling cradle is positioned over the top of the horizontal firkin. Chilled water from a suitable remote cooler is circulated through the stainless steel coil, removing heat from the area surrounding the cask.

An insulated cask cooling jacket is then fitted over the cask and cooling cradle. The jacket helps retain the cold and reduces heat gain from the surrounding environment.

This provides a practical way of temperature controlling cask ale where a temperature-controlled cellar is unavailable or where casks are being served remotely from the main cellar.

Ideal for Cask Ale Bars & Beer Festivals

The 9 gallon cask cooling cradle is particularly useful for:

• Pubs serving cask ale from a back-bar position
• Beer festivals
• Mobile and temporary bars
• Brewery taprooms
• Outdoor events
• Additional casks located outside the main cellar
• Real ale dispense installations without conventional cellar cooling

Cask Cooling Jacket Sold Separately

For effective temperature control, we recommend using the cooling cradle together with a compatible 9 gallon insulated cask cooling jacket.

Cask cooling jacket is sold separately.
