CO2 Gas Primary Regulator – Bottle Mounted 0–35 PSI Beer Regulator

CO2 Gas Primary Regulator – Bottle Mounted 0–35 PSI Beer Regulator

The CO2 Gas Regulator PRV Bottle Mounted is a primary beverage gas regulator designed for controlling CO2 pressure in professional draught beer and beverage dispense systems.

Mounted directly onto a compatible CO2 gas cylinder, the regulator reduces the high cylinder pressure to an adjustable working pressure of 0–35 PSI, allowing the CO2 supply to be set for the requirements of the individual draught system.

Featuring a 3/8" push-fit gas outlet and dual pressure relief valves, this regulator is suitable for pubs, bars, breweries and other professional drinks dispense installations.

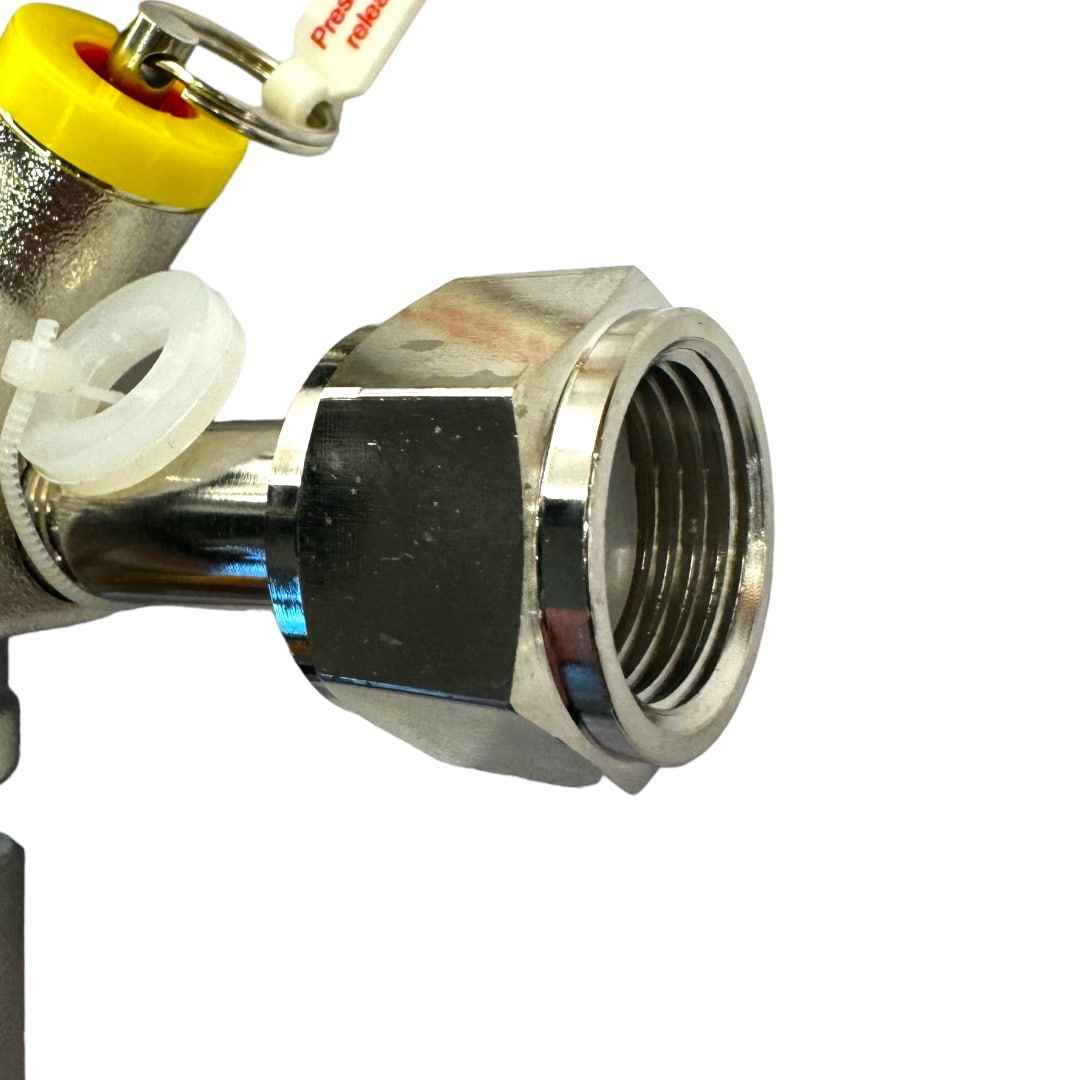

Bottle Mounted CO2 Beer Gas Regulator

This is a primary CO2 regulator, meaning it connects directly to the gas cylinder and provides the first stage of pressure reduction within the dispense system.

The regulated CO2 supply can then be connected directly to compatible dispense equipment or supplied to secondary regulator valves where individual keg pressures need to be controlled separately.

Key Features

• Bottle mounted CO2 gas regulator
• Primary regulator for draught beer systems
• Adjustable 0–35 PSI outlet pressure
• Designed for compatible CO2 cylinders
• 3/8" push-fit gas outlet
• Dual pressure relief valves
• Suitable for professional beverage dispense systems
• Suitable for pubs, bars and breweries
• Can supply compatible secondary gas regulators
• Compact bottle mounted design

Adjustable 0–35 PSI Pressure

The regulator provides an adjustable outlet pressure between 0 and 35 PSI.

This allows the working pressure to be set according to the requirements of the beverage and dispense installation.

Correct dispense pressure depends on several factors, including:

• Beverage type
• Storage temperature
• Required carbonation
• Beer line diameter and length
• Cooler configuration
• Tap and font arrangement
• Keg manufacturer's recommendations

There is no single correct pressure for every draught system.

3/8" Push-Fit Gas Outlet

The regulator is fitted with a 3/8" push-fit outlet, allowing connection to compatible 3/8" beverage gas pipe.

This is a standard pipe size used throughout many professional draught beer and cellar gas installations.

Dual Pressure Relief Valves

The regulator incorporates two pressure relief valves as part of its pressure management and safety design.

These are intended to provide pressure relief should the regulated side of the system experience excessive pressure.

Pressure relief devices should never be blocked, modified or used as a substitute for correct regulator adjustment and installation.

Primary & Secondary Gas Regulation

This regulator can be used as the primary pressure regulator within a larger cellar gas installation.

A typical system may consist of:

CO2 Cylinder → Primary CO2 Regulator → Gas Pipe → Secondary Regulator → Keg Coupler

Secondary regulators can then be used where different kegs or products require individual dispense pressures.

Suitable For

The Bottle Mounted CO2 Gas Regulator is suitable for compatible CO2 beverage gas systems used in:

• Pubs
• Bars
• Breweries
• Brewery taprooms
• Restaurants
• Hotels
• Cellar installations
• Mobile bars
• Event bars
• Professional draught dispense systems

Important

This regulator is designed for compatible beverage-grade CO2 systems.

Always ensure the regulator connection matches the gas cylinder being used and that the correct beverage gas is connected.

Gas cylinders contain gas under high pressure. Regulators and associated gas equipment should be installed and adjusted by a competent person familiar with beverage gas systems.

Do not use welding or industrial regulators as a substitute for the correct beverage gas regulator.

Specifications

• Regulator Type: Primary CO2 gas regulator
• Mounting: Bottle mounted
• Gas: CO2
• Adjustable Outlet Pressure: 0–35 PSI
• Outlet Connection: 3/8" push-fit
• Pressure Relief: Dual PRV
