Grundy G Type Cleaning Socket – Wall Mounted Beer Line Cleaning

Grundy G Type Cleaning Socket – Wall Mounted Beer Line Cleaning

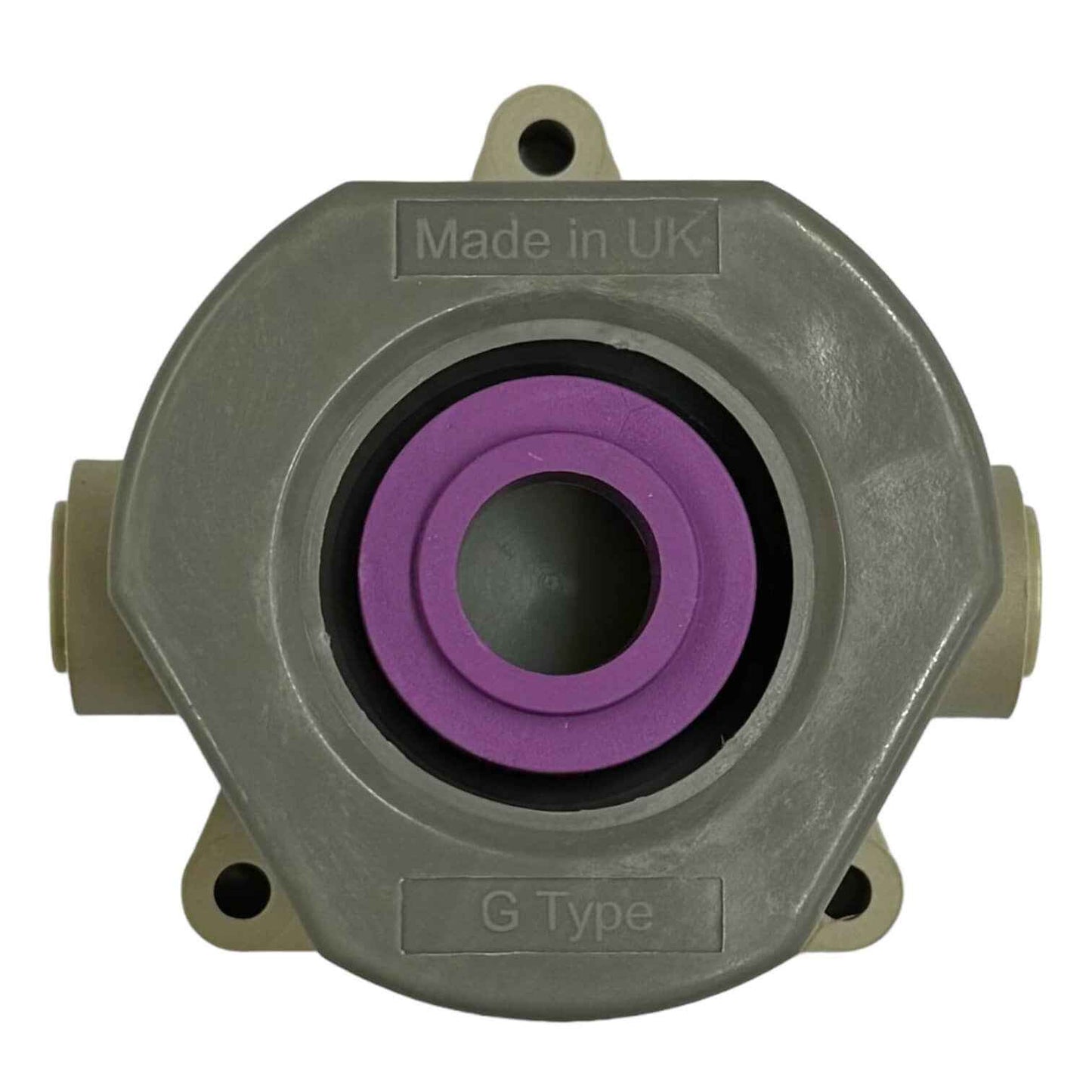

The Grundy G Type Cleaning Socket is a wall mounted beer line cleaning fitting designed specifically for use with compatible G-Type / Grundy keg couplers.

Installed as part of a professional beer line cleaning system, the socket allows the G-Type keg coupler to be disconnected from the keg and connected directly to the cleaning circuit. Cleaning solution can then be passed through the product line and associated draught dispense equipment.

Featuring 3/8" push-fit side connections, a 30% glass-reinforced nylon body and three-point wall mounting, this cleaning socket is designed for regular use in pubs, bars, breweries and professional cellar installations.

G Type Beer Line Cleaning Socket

The cleaning socket provides the correct connection for compatible G-Type keg couplers, commonly also referred to as Grundy couplers.

During beer line cleaning, the existing keg coupler can remain connected to the product pipework and simply be transferred from the keg to the cleaning socket.

This provides a permanent and accessible cleaning connection within the cellar.

Key Features

• Grundy G Type cleaning socket
• Compatible with suitable G-Type / Grundy keg couplers
• Wall mounted design
• 3/8" push-fit side connections
• 30% glass-reinforced nylon body
• Strong and chemical-resistant construction
• Thermoplastic elastomer sealing component
• Antimicrobial additive incorporated into the seal material
• Three mounting holes for secure installation
• Designed for professional beer line cleaning
• Suitable for permanent cellar cleaning systems

3/8" Push-Fit Side Connections

The cleaning socket features 3/8" push-fit side connections, allowing it to be incorporated into compatible beer line cleaning pipework.

Standard 3/8" drinks dispense tubing can be connected directly to suitable push-fit connections, making the socket straightforward to integrate into new or existing cleaning installations.

Glass-Reinforced Nylon Construction

The socket body is manufactured from 30% glass-reinforced nylon, providing a strong and durable construction for professional cellar environments.

The material provides resistance to compatible beer line cleaning chemicals when the cleaning products are correctly diluted and used according to the manufacturer's instructions.

Wall Mounted Design

Three mounting holes allow the G-Type cleaning socket to be securely installed onto a suitable wall, cleaning board or other fixed surface.

The three-point mounting arrangement provides a stable fixing and can help accommodate mounting surfaces that are not completely even.

Sealing Component

The cleaning socket incorporates a thermoplastic elastomer seal with an antimicrobial additive within the material.

The seal forms part of the connection between the G-Type keg coupler and cleaning socket.

The antimicrobial additive does not replace normal cleaning procedures. The socket and associated dispense equipment must still be cleaned and maintained correctly.

How to Use

During routine beer line cleaning:

1. Disconnect the G-Type keg coupler from the keg.
2. Connect the coupler to the Grundy G Type Cleaning Socket.
3. Operate the beer line cleaning system according to the normal procedure.
4. Pass correctly diluted cleaning solution through the product line.
5. Follow the manufacturer's recommended contact time.
6. Thoroughly rinse the complete system with clean water before reconnecting the keg.

Suitable For

The Grundy G Type Cleaning Socket is suitable for compatible beer line cleaning systems used in:

• Pubs and bars
• Breweries
• Brewery taprooms
• Restaurants
• Hotels
• Cellar installations
• Event and mobile bar facilities
• Professional drinks dispense installations

Important Compatibility Information

This cleaning socket is designed for compatible G-Type / Grundy keg couplers.

It is not suitable for S-Type, D-Type, A-Type, U-Type/UEC, M-Type or KeyKeg couplers. Separate cleaning sockets are available for these keg connection types.

Always confirm the coupler type before ordering.

Specifications

• Product: Wall Mounted Beer Line Cleaning Socket
• Coupler Compatibility: G-Type / Grundy
• Connections: 3/8" push-fit side connections
• Body Material: 30% glass-reinforced nylon
• Seal: Thermoplastic elastomer with antimicrobial additive
• Mounting: Three screw holes
• Application: Professional beer line cleaning
