KeyKeg to S-Type Cleaning Bottle Adapter – Sankey Cleaning Bottle Converter

KeyKeg to S-Type Cleaning Bottle Adapter – Sankey Cleaning Bottle Converter

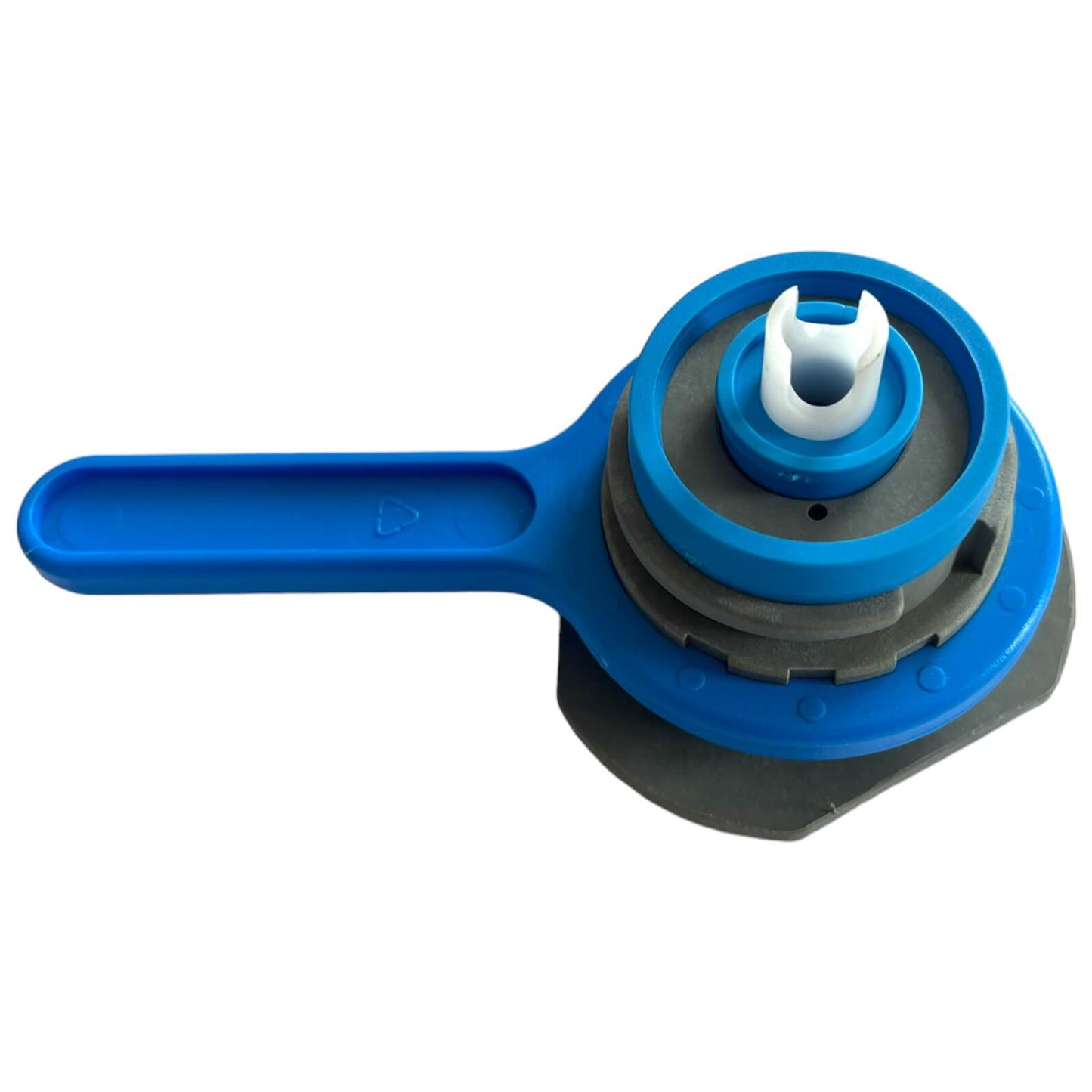

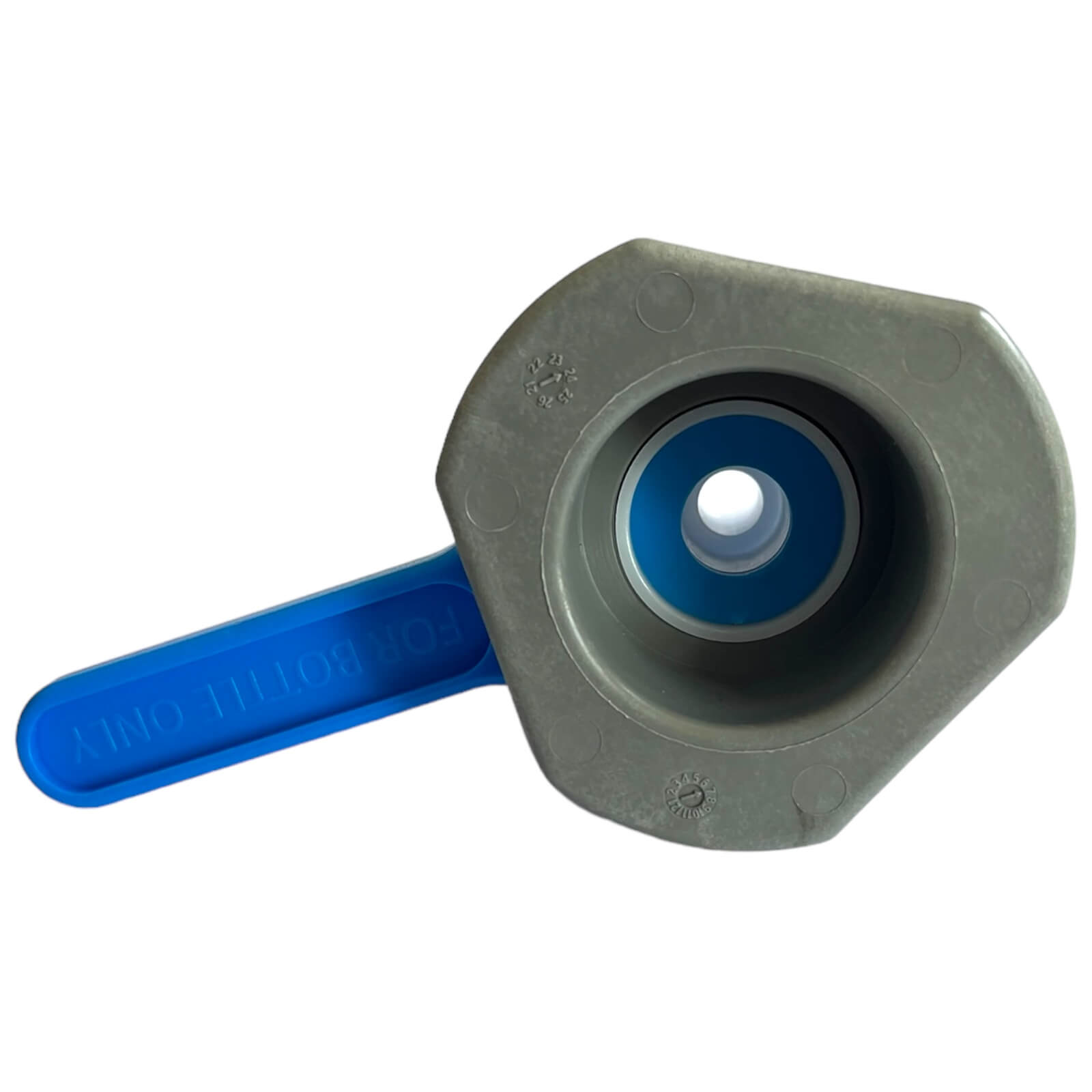

The KeyKeg to S-Type Cleaning Bottle Adapter allows a compatible Sankey S-Type pressurised beer line cleaning bottle to be converted for use with a KeyKeg K-Type keg coupler.

Instead of purchasing a separate KeyKeg cleaning bottle, the adapter fits to a compatible S-Type cleaning bottle and provides the connection required for a KeyKeg coupler. This makes it a useful addition for pubs, bars, breweries and dispense technicians working with multiple keg connection types.

Manufactured from durable engineering materials, the adapter is rated to a maximum working pressure of 60 PSI within a temperature range of +1°C to +30°C.

Convert an S-Type Cleaning Bottle to KeyKeg

Pressurised cleaning bottles are commonly supplied with a Sankey S-Type connection.

This adapter allows a compatible S-Type cleaning bottle to be used with a KeyKeg coupler, reducing the need to keep a separate pressurised cleaning bottle for each coupler type.

The setup becomes:

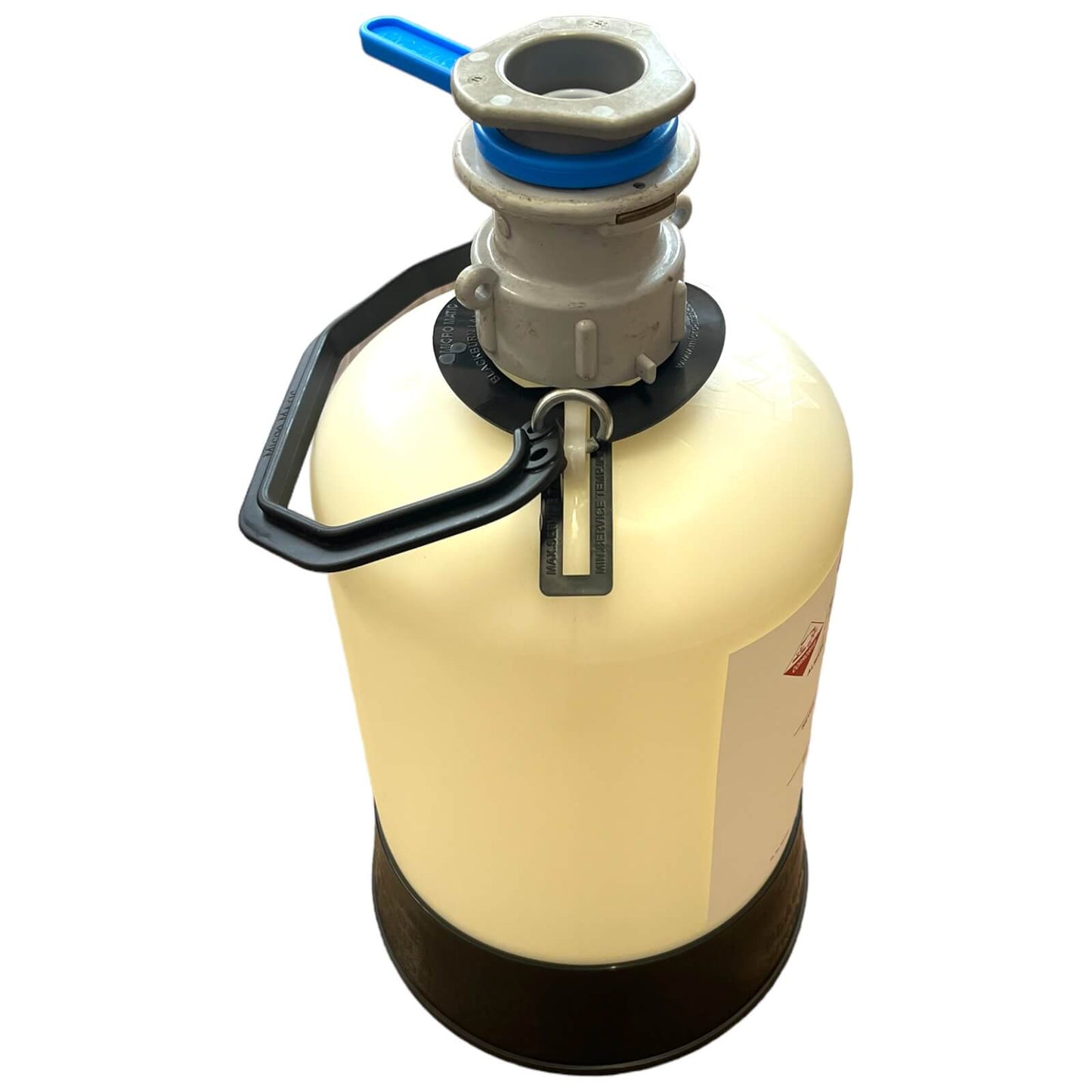

S-Type Pressurised Cleaning Bottle → KeyKeg Adapter → KeyKeg K-Type Coupler → Beer Line

This allows cleaning solution from the bottle to be passed through the KeyKeg coupler and associated product line during routine beer line cleaning.

Key Features

• KeyKeg to S-Type cleaning bottle adapter
• Converts compatible Sankey S-Type cleaning bottles
• Provides connection for a KeyKeg K-Type coupler
• Allows one cleaning bottle to be used with an additional coupler type
• Maximum working pressure: 60 PSI
• Operating temperature: +1°C to +30°C
• 30% glass-reinforced nylon body
• Acetal spigot and handle
• Proprietary elastomer seals
• Suitable for professional beer line cleaning
• Ideal for pubs, bars, breweries and dispense technicians

Professional Beer Line Cleaning Adapter

The adapter is particularly useful for engineers and cellar installations where both conventional Sankey and KeyKeg dispense equipment is maintained.

Rather than carrying or installing a separate cleaning bottle specifically for KeyKeg couplers, an existing compatible S-Type pressurised cleaning bottle can be converted when required.

Construction

The adapter is manufactured from materials selected for use within compatible pressurised beverage cleaning applications.

• Body: 30% glass-reinforced nylon
• Spigot: Acetal
• Handle: Acetal
• Seals: Proprietary elastomer blend

Working Pressure & Temperature

The adapter has the following operating limits:

• Maximum Pressure: 60 PSI
• Operating Temperature: +1°C to +30°C

These limits must not be exceeded.

Always ensure the cleaning bottle, keg coupler and other components within the cleaning system are also suitable for the pressure being used.

Seal Inspection

Before use, check that all seals are:

• Clean
• Undamaged
• Correctly positioned
• Free from excessive wear

Damaged, dirty or incorrectly fitted seals can prevent the adapter from forming a suitable liquid and gas-tight connection.

Do not use the adapter if any component or seal appears damaged.

Suitable For

The KeyKeg to Sankey Cleaning Bottle Adapter is suitable for:

• Pubs and bars
• Breweries
• Brewery taprooms
• Cellar installations
• Drinks dispense engineers
• Beer line cleaning systems
• Mobile and event bar operators
• Professional draught dispense maintenance

Important

Cleaning bottle and KeyKeg coupler are not included and are sold separately.

This adapter is designed to convert a compatible S-Type pressurised cleaning bottle for connection to a KeyKeg K-Type coupler.

Always inspect the adapter and seals before pressurising the system. Do not exceed the stated 60 PSI maximum pressure or +1°C to +30°C operating temperature range.

Follow the cleaning chemical manufacturer's instructions for dilution, contact time, handling and rinsing.

Technical Specifications

• Product: KeyKeg Cleaning Bottle Adapter
• Converts: S-Type Sankey Cleaning Bottle to KeyKeg Coupler Connection
• Coupler Connection: KeyKeg / K-Type
• Maximum Pressure: 60 PSI
• Temperature Range: +1°C to +30°C
• Body: 30% glass-reinforced nylon
• Spigot & Handle: Acetal
• Seals: Proprietary elastomer blend
• Cleaning Bottle: Not included
• KeyKeg Coupler: Not included
