Mixed Gas Primary Regulator PRV – Bottle Mounted Beer Gas Regulator

Mixed Gas Primary Regulator PRV – Bottle Mounted Beer Gas Regulator

The Mixed Gas Regulator PRV Bottle Mounted is a primary beverage gas regulator designed for use with compatible mixed gas and nitrogen cylinders in professional draught beer and beverage dispense systems.

Suitable for common beverage gas mixtures including 30/70 and 60/40, as well as compatible nitrogen (N2) supplies, the regulator provides adjustable pressure control with a maximum outlet pressure of 45 PSI.

It features a 3/8" push-fit outlet and dual pressure relief valves, providing a practical primary regulator for pubs, bars, breweries and professional cellar installations.

Bottle Mounted Mixed Gas Beer Regulator

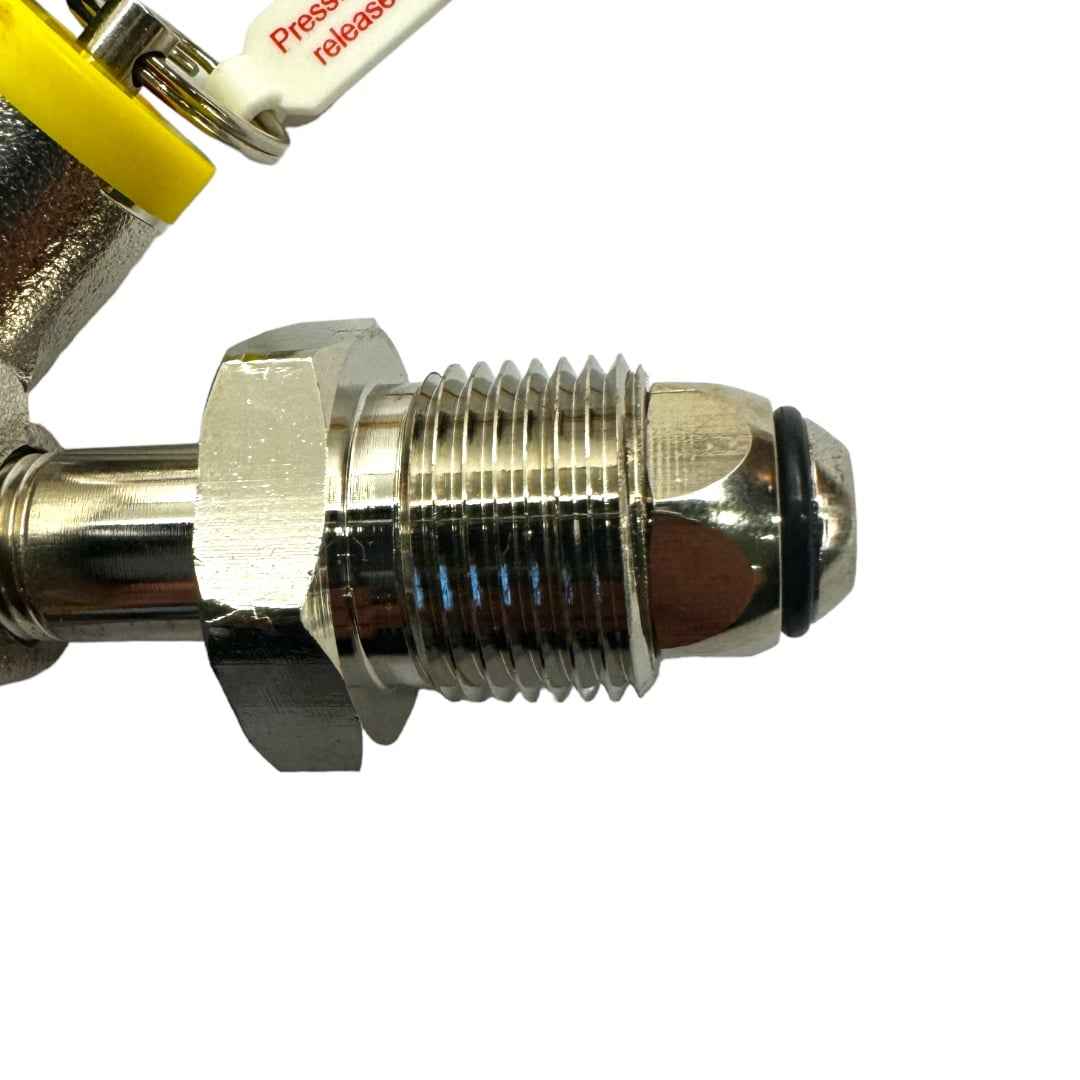

This is a primary gas regulator, designed to connect directly to a compatible beverage gas cylinder.

The regulator reduces the high cylinder pressure to a suitable working pressure for the draught dispense system.

The regulated supply can then be connected to compatible keg couplers or distributed through secondary regulators where individual products require different pressures.

Key Features

• Bottle mounted mixed gas regulator
• Primary regulator for draught beer systems
• Suitable for compatible 30/70 mixed gas
• Suitable for compatible 60/40 mixed gas
• Suitable for compatible nitrogen beverage gas
• Maximum outlet pressure: 45 PSI
• 3/8" push-fit outlet
• Dual pressure relief valves
• Safety relief pressure approximately 52 PSI
• Suitable for professional beverage dispense systems
• Suitable for pubs, bars, breweries and cellar installations
• Push-fit outlet style may vary

30/70 Mixed Gas

30/70 mixed gas contains approximately 30% CO2 and 70% nitrogen and is commonly used with certain draught products where a higher nitrogen content is required.

Always use the gas mixture specified by the brewery or beverage manufacturer.

60/40 Mixed Gas

60/40 mixed gas contains approximately 60% CO2 and 40% nitrogen and is commonly used with a range of draught beers and lagers.

The correct gas mixture and operating pressure will depend on the beverage and dispense system.

Nitrogen Beverage Gas

The regulator can also be used with compatible nitrogen beverage gas systems, subject to the requirements of the individual installation.

Always confirm the correct cylinder connection, gas type and pressure range before use.

Maximum 45 PSI Outlet Pressure

The regulator provides adjustable gas pressure up to a maximum output of 45 PSI.

Correct operating pressure depends on factors including:

• Beverage type
• Gas mixture
• Keg requirements
• Storage temperature
• Beer line length and diameter
• Cooler configuration
• Tap and font arrangement

There is no single pressure setting suitable for every draught system.

Dual Pressure Relief Valves

The regulator incorporates two pressure relief valves, with a stated blow-off pressure of approximately 52 PSI.

These provide pressure relief should excessive pressure occur on the regulated side of the system.

Pressure relief valves should never be blocked, modified or used as a substitute for correct regulator setup.

3/8" Push-Fit Outlet

The regulator is supplied with a 3/8" push-fit gas outlet for connection to compatible beverage gas pipe.

The exact style of the push-fit fitting may vary depending on stock.

Primary & Secondary Gas Regulation

Where several kegs require different dispense pressures, this primary regulator can supply compatible secondary gas regulators.

A typical installation may be:

Mixed Gas Cylinder → Primary Mixed Gas Regulator → Gas Pipe → Secondary Regulator → Keg Coupler

This allows individual products to be operated at appropriate secondary pressures from the same primary gas supply.

Suitable For

The Bottle Mounted Mixed Gas Regulator is suitable for compatible beverage gas systems used in:

• Pubs
• Bars
• Breweries
• Brewery taprooms
• Restaurants
• Hotels
• Cellar installations
• Mobile bars
• Event bars
• Professional draught dispense systems

Specifications

• Regulator Type: Primary mixed gas regulator
• Configuration: Bottle mounted
• Compatible Gas: 30/70 mixed gas, 60/40 mixed gas and compatible nitrogen beverage gas
• Maximum Outlet Pressure: 45 PSI
• Pressure Relief: Dual PRV
• Relief Pressure: Approximately 52 PSI
• Outlet Connection: 3/8" push-fit
• Push-Fit Style: May vary

Important

This regulator is intended for use with compatible beverage gas cylinders and draught dispense systems.

Always check that the cylinder connection, regulator and gas type are compatible before installation.

Gas cylinders contain gas under high pressure and should be handled and connected by a competent person familiar with beverage gas systems.
