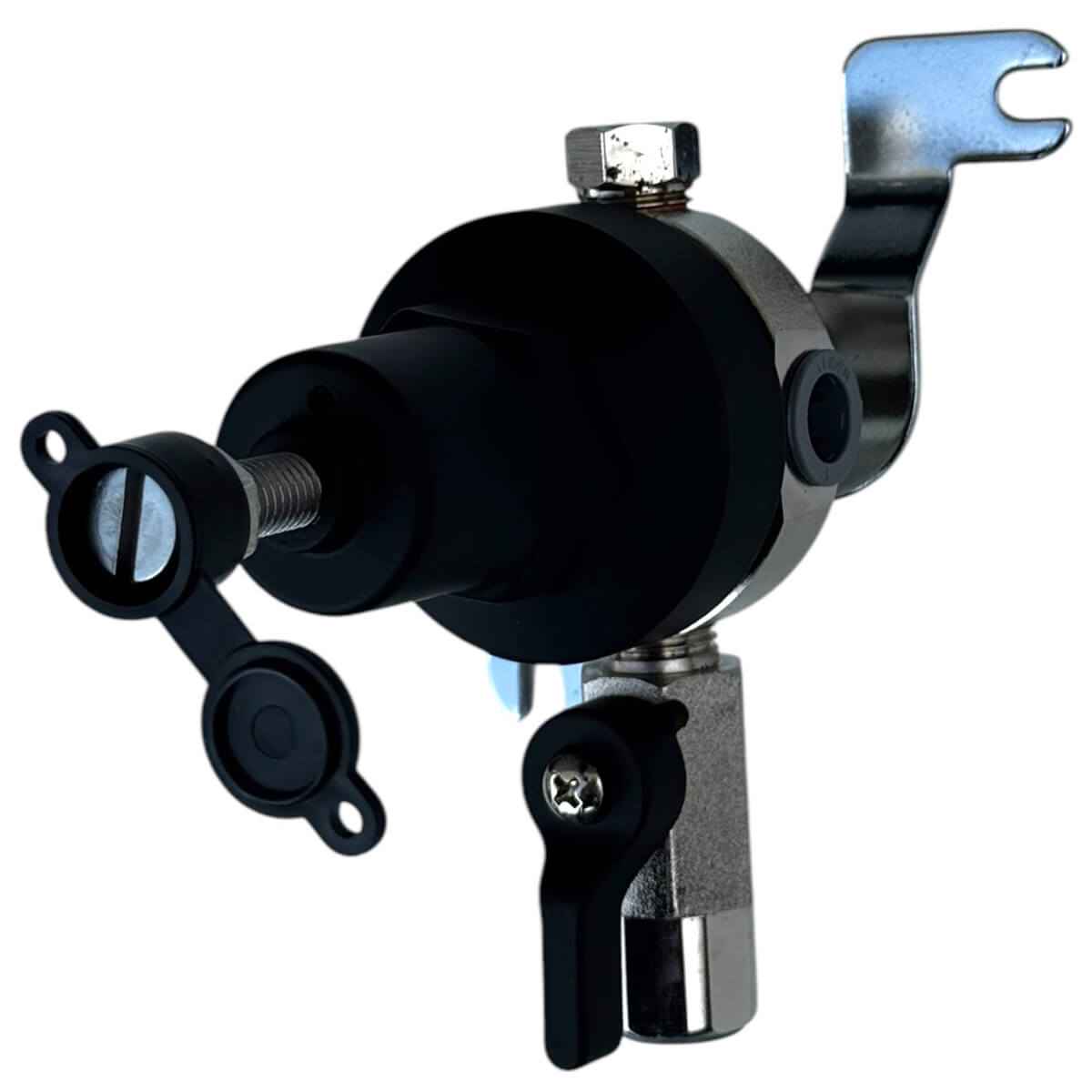

Secondary Gas Regulator Valve SRV – Single Without Gauge

Secondary Gas Regulator Valve SRV – Single Without Gauge

The Secondary Gas Regulator Valve (SRV) is a wall mounted regulator designed to provide individual pressure control for a keg or draught beverage line from an existing regulated gas supply.

This single SRV model is supplied without a pressure gauge and is ideal for professional pubs, bars and cellar installations where individual products require their own secondary gas pressure setting.

It features 3/8" push-fit connections, an adjustable pressure control and an integrated on/off isolation switch.

Secondary Gas Regulator Without Gauge

A secondary regulator is installed downstream from the primary gas regulator and allows the pressure supplied to an individual keg or group of kegs to be adjusted independently.

This is particularly useful in cellars where different beers, ciders or other draught products require different dispense pressures.

Rather than operating every keg at the same pressure, individual secondary regulators allow the gas supply to be divided and controlled according to the requirements of each product and dispense system.

Key Features

• Secondary gas regulator valve
• Single SRV
• Supplied without pressure gauge
• Adjustable secondary gas pressure
• Wall mounted design
• Wall mounting bracket included
• 3/8" push-fit connections
• 3/8" push-fit inlet connections on both sides
• 3/8" push-fit bottom outlet
• Integrated on/off isolation switch
• Suitable for professional draught dispense systems
• Compact design for cellar installations

3/8" Push-Fit Connections

The regulator features convenient 3/8" push-fit gas connections for integration into standard beverage gas pipework.

Connection configuration:

• 3/8" push-fit inlet – left side
• 3/8" push-fit inlet – right side
• 3/8" push-fit regulated outlet – bottom

The side connections allow the gas supply to be routed through compatible installations and can make it easier to create multiple secondary regulator arrangements.

Integrated Isolation Switch

The SRV includes an on/off isolation switch, allowing the downstream gas supply to be shut off at the regulator when required.

This is useful during keg changes, servicing and general cellar maintenance.

Wall Mounted Secondary Regulator

A mounting bracket is included, allowing the regulator to be securely installed on a suitable cellar or bar wall.

Wall mounting keeps the regulator accessible while helping keep gas pipework organised within the dispense installation.

Suitable For

This single secondary regulator valve without gauge is suitable for compatible beverage gas systems used in:

• Pubs and bars
• Breweries and taprooms
• Restaurants
• Hotels
• Cellar installations
• Mobile bar systems
• Event bars
• Professional draught dispense installations

It can be used with compatible beverage gas supplies including CO2, mixed gas and nitrogen, subject to the requirements and pressure limits of the individual system.

Primary vs Secondary Gas Regulators

A secondary regulator is not a replacement for a primary gas bottle regulator.

The primary regulator connects to the gas cylinder and reduces the high cylinder pressure to a suitable working pressure.

The secondary regulator is then installed further downstream to provide additional control over the pressure supplied to an individual keg or dispense line.

Without Pressure Gauge

This version is supplied without a pressure gauge.

A version with an output pressure gauge is also available where a visual pressure reading is required.

Important

Always use the correct beverage gas, primary regulator and pressure settings for the product and dispense system being operated.

Gas equipment should be installed and adjusted by a competent person familiar with professional beverage dispense systems.
