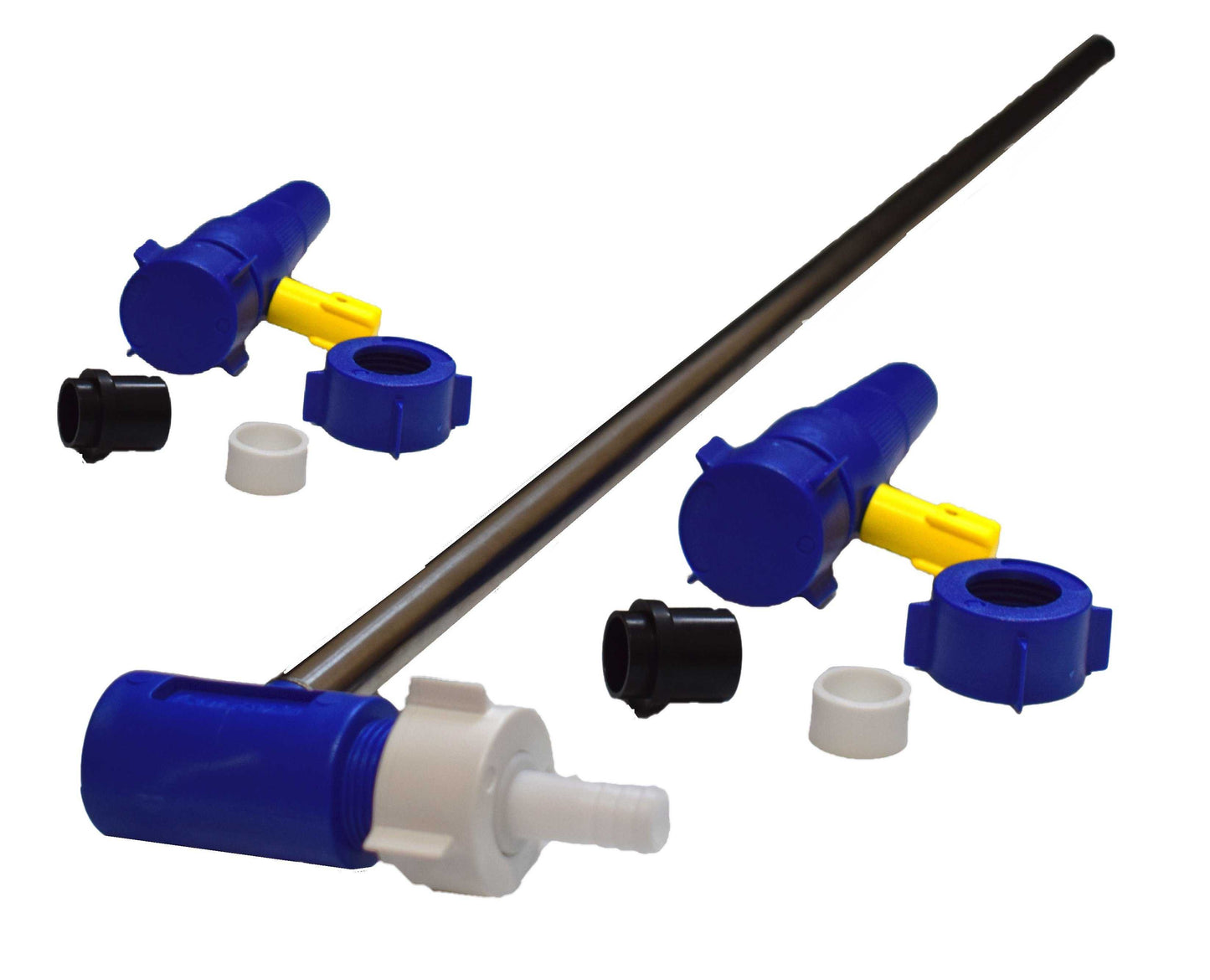

Single Rigid Cask Ale Extractor Rod – 28" Stainless Steel

Single Rigid Cask Ale Extractor Rod for Upright Dispense

The Single Rigid Cask Ale Extractor Rod allows you to serve real ale from an upright cask through a compatible beer engine or handpull. Its 28-inch stainless steel tube provides a practical solution for pubs, taprooms and temporary bars where cellar space matters.

With a filtered inlet and a separate stainless steel mesh hop filter, the extractor provides two stages of filtration to help reduce hop particles and residue entering the dispense system.

Key Features

• Single outlet: Designed to supply one compatible beer engine or handpull.
• Upright cask dispense: A space-saving arrangement for vertical ale extraction.
• 28-inch stainless steel tube: Approximately 711 mm tube length.
• Food-grade outlet material: Suitable for contact with the beer being dispensed.
• Filtered inlet: Features 24 holes, each measuring 2 mm in diameter.
• 316 stainless steel hop filter: Dome-shaped mesh with a rubber sealing edge.
• Choice of threads: Available in 3/4" BSP, L Thread and Y Thread.
• Optional extra body: Prepare another cask in advance for easier changeovers.

Two Stages of Filtration

Inlet filter: The bottom of the extractor rod features a 24-hole inlet. Each 2 mm opening helps restrict larger hop particles and residue from entering the tube.

Mesh hop filter: A second filter made from 316 stainless steel mesh provides further filtration at the outlet. Its dome-shaped design sits on the hose tail, while the rubber edge forms an airtight seal between the tail and outlet when correctly fitted.

Together, these filters help reduce unwanted particles passing into the beer line.

Choose the Correct Outlet Thread

The Single Rigid Cask Ale Extractor is available with 3/4" BSP, L Thread or Y Thread connections.

Select the thread that matches your existing dispense fittings. Check that the 28-inch tube length is suitable for your intended cask before ordering.

Optional Extra Ale Extractor Body

An additional ale extractor body allows you to prepare your next cask before the current one is empty. The rod can then be transferred into the prepared cask at changeover, helping reduce delays during service.

Choose the extra body option if you regularly rotate casks or want to simplify cellar preparation.

Installation and Care

Ensure the hop filter and seals are correctly seated to maintain an airtight connection. Clean the rod, inlet holes and mesh filter as part of your regular cask dispense cleaning routine.

Select your outlet thread and extra body option before adding to your basket. For help choosing the correct fittings, contact sales@drin-kit.com.
