DMFit

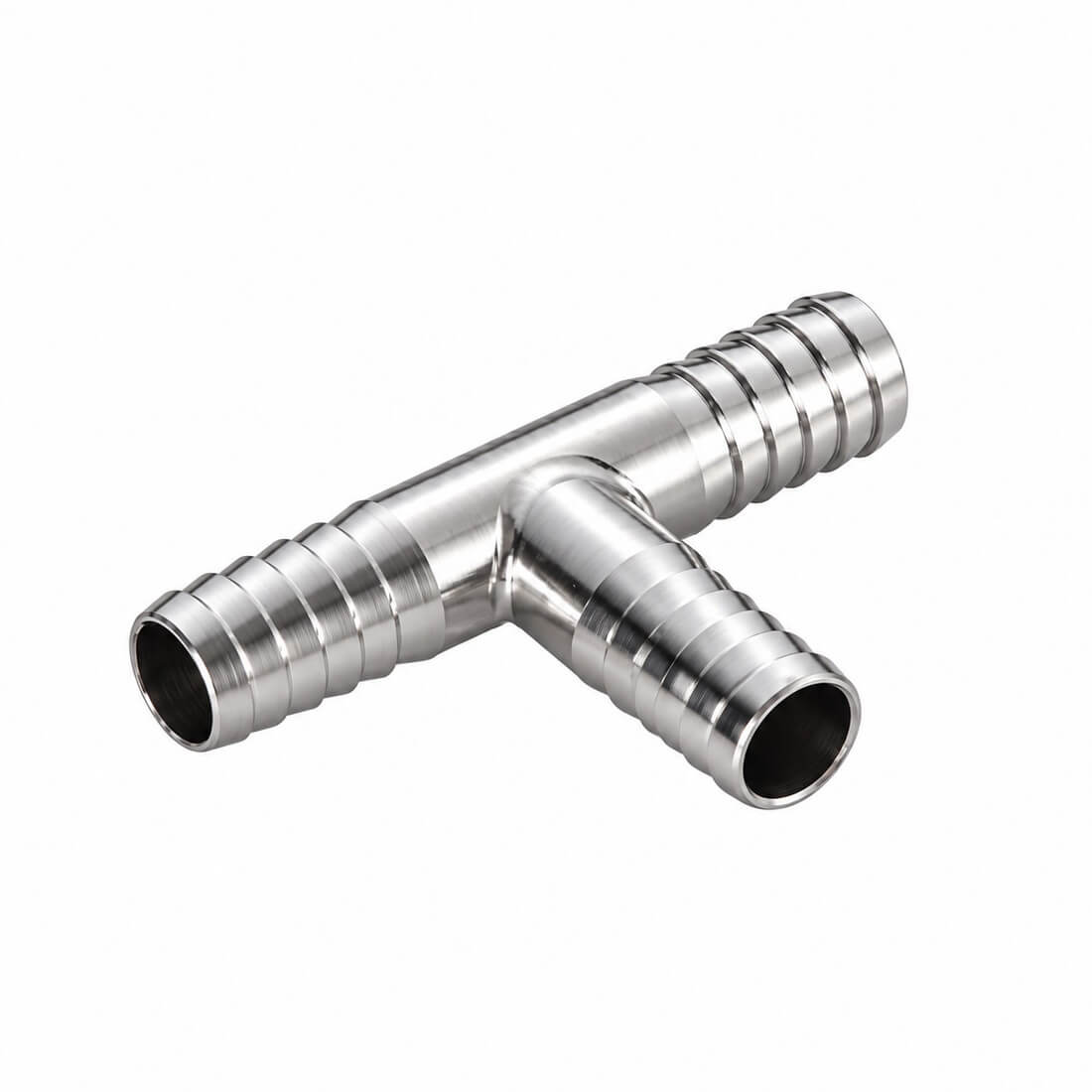

Stainless Steel Barbed Tee Fitting – 1/4″, 3/8″ and 1/2″ Options
Stainless Steel Barbed Tee Fitting – 1/4″, 3/8″ and 1/2″ Options
Regular price
£2.22
Regular price
Sale price
£2.22
Unit price
/
per
Shipping calculated at checkout.
Product Code
SKU:SST040404
Out of stock
Quantity
Couldn't load pickup availability
This stainless steel barbed tee fitting connects three hose runs, allowing compatible fluid lines to branch or join. Choose from five variants with equal or mixed barb sizes. Check the part number and dimensions below to select the correct fitting for your setup.
Stainless Steel Barbed Tee Sizes
| Part number | Barb size(s) | Length (B) | Height (C) |
|---|---|---|---|
| SST040404 | 1/4″ (7.24 mm) | 1.90″ (48.3 mm) | 1.09″ (27.7 mm) |
| SST060604 | 3/8″ × 1/4″ (9.96 × 7.3 mm) | 2.13″ (54.0 mm) | 1.20″ (30.5 mm) |
| SST060606 | 3/8″ (9.96 mm) | 2.13″ (54.0 mm) | 1.25″ (31.8 mm) |
| SST070707 | 1/2″ (13.7 mm) | 57.5 mm | 34.9 mm |
| SST070704 | 1/2″ × 1/2″ × 1/4″ (13.7 × 13.7 × 7.3 mm) | 57.5 mm | 35.7 mm |
Stainless Steel Material Specifications
Our stainless steel fittings are made from a combination of Type 303 and Type 304 materials. Type 303 is certified to ASTM A581/A582 or AMS 5640. Type 304 is certified to AMS 5639 or ASTM A479. Any tubing used is 304 stainless steel certified to ASTM A269.
