Top pump | Water circulation with agitator 3 stage

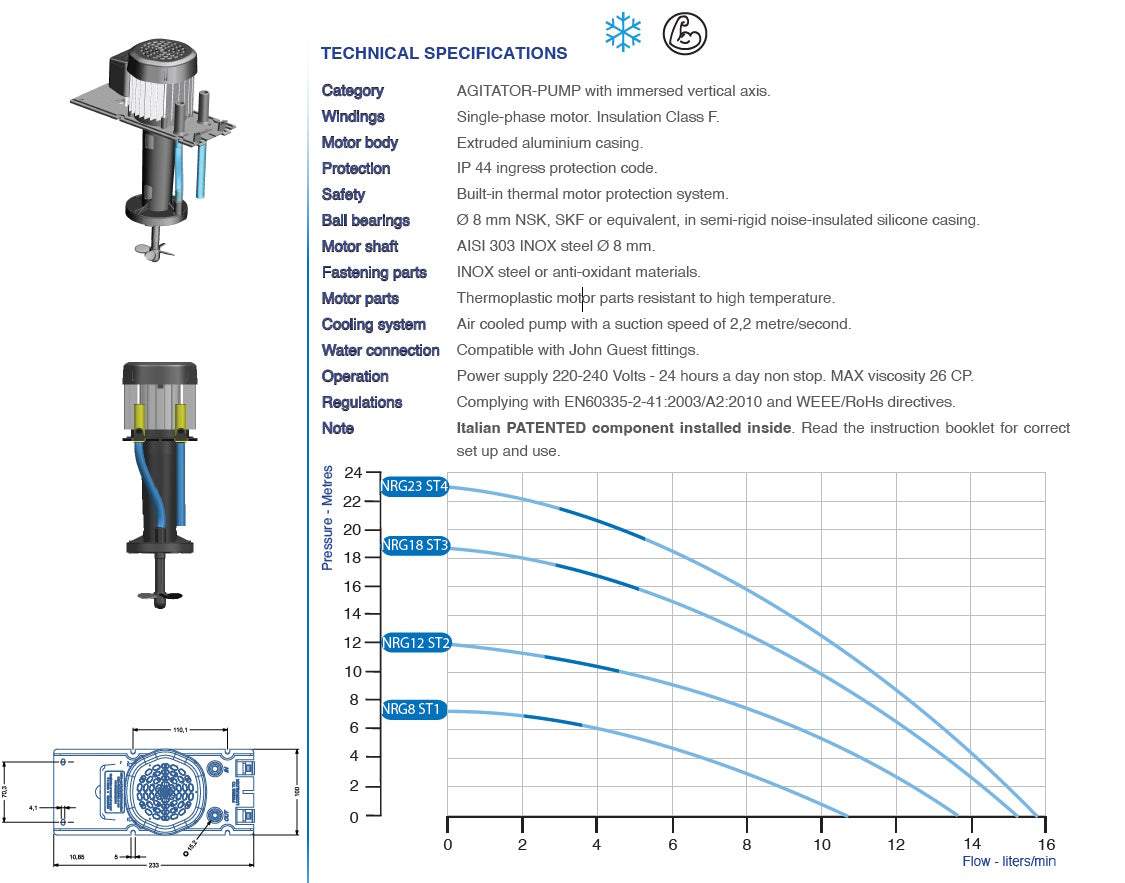

Saber NRG 18 ST3 Agitator Top Pump – Heavy-Duty Vertical Immersed Pump for High-Viscosity Coolants

Engineered for demanding applications, the NRG Series Agitator Pump is a high-performance vertical immersed pump designed to handle high-viscosity fluids with ease. Ideal for use in remote beer coolers and other beverage dispensing systems, this pump ensures continuous and reliable coolant agitation, even under 24/7 operation.

Volt 220/240

Hz 50

Amp 0,44

Watt 97

RPM 2900

Propeller mm - blades

Key Features:

• Robust Single-Phase Motor
  Designed for reliability with a high-efficiency winding and insulation rated to Class F, supporting extended use under tough conditions.

• Durable Aluminium Motor Housing
  Constructed with an extruded aluminium casing for improved heat dissipation and structural integrity.

• IP44 Protection
  Offers strong resistance against water splashes and solid particles, making it suitable for moist and demanding environments.

• Built-In Safety
  Equipped with an integrated thermal motor protection system to prevent overheating and extend pump lifespan.

• High-Quality Bearings
  Utilises Ø 8 mm NSK or SKF ball bearings, mounted in a semi-rigid, noise-insulated silicone casing to reduce vibration and ensure quiet operation.

• Corrosion-Resistant Motor Shaft
  Features an AISI 303 stainless steel (INOX) shaft for long-term performance in corrosive or wet conditions.

• Premium Fastening Components
  Made from INOX stainless steel or anti-oxidant materials for long-term durability and corrosion resistance.

• Thermoplastic Motor Components
  High-temperature-resistant thermoplastic parts ensure reliable performance during continuous operation.

• Efficient Air Cooling System
  Delivers superior cooling with a suction speed of 2.2 m/s, preventing overheating during prolonged use.

• Easy Water Connection
  Fully compatible with John Guest fittings, allowing for quick and secure installation.

• Continuous Operation
  Built to run non-stop 24 hours a day, powered by a 220-240V supply. Handles fluids with a maximum viscosity of 26 cP.

• Compliance & Safety
  Fully compliant with EN60335-2-41:2003/A2:2010 safety standards, and WEEE/RoHS directives for environmental responsibility.

• Patented Italian Component
  Includes a unique, Italian-patented internal component for improved agitation performance. Please refer to the instruction manual for proper setup and use.

Why Choose the NRG Series Agitator Pump?

• Specially developed for high-viscosity coolant agitation

• Ideal for remote draught cooler systems and other heavy-duty beverage dispense applications

• Long-lasting, low-noise operation

• Proven reliability with trusted NSK or SKF bearing brands

• Easy installation with John Guest compatibility

Upgrade your cooling system with the NRG Agitator Pump—the ultimate solution for consistent coolant movement and top-tier performance in beverage dispense equipment.
