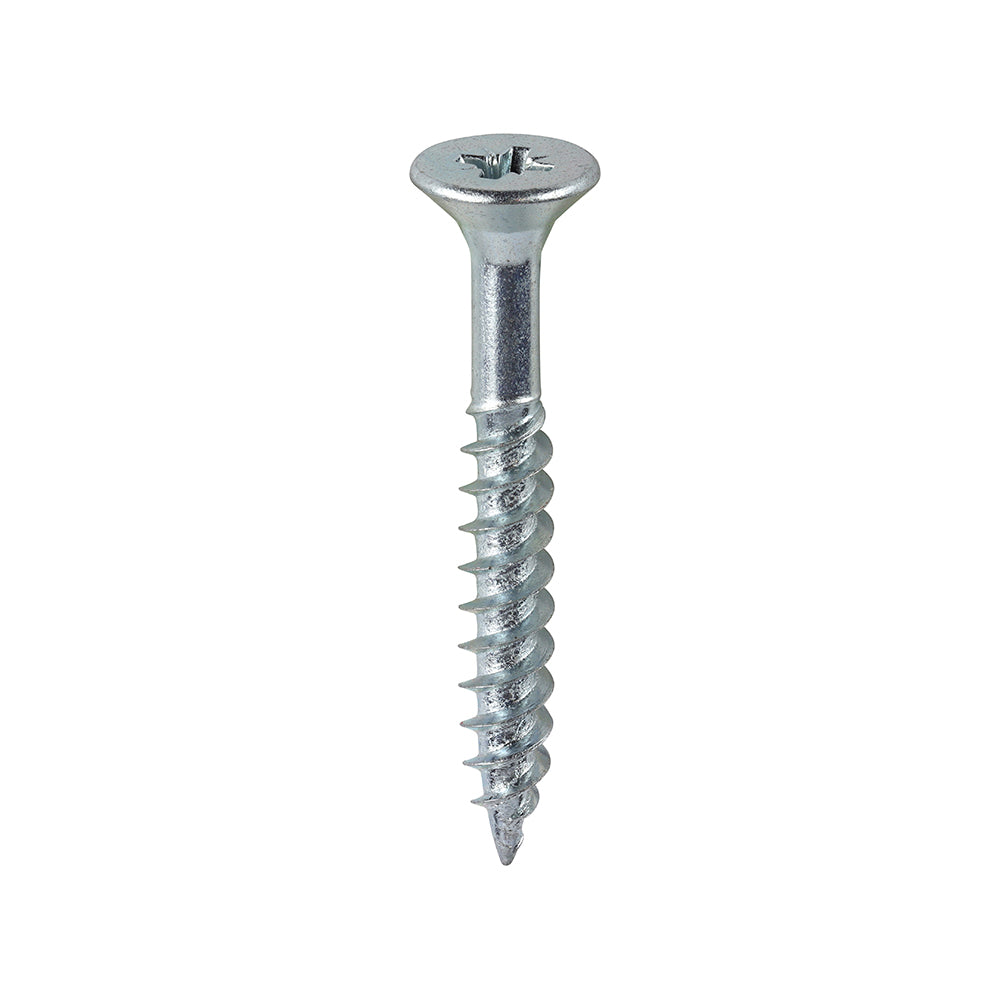

1.5" x 10 Twin-Threaded Woodscrews – 5.0 x 40mm PZ2 – Box of 200

1.5" x 10 Twin-Threaded Woodscrews – 5.0 x 40mm PZ2 – Box of 200

These 1.5" x 10 Twin-Threaded Woodscrews are general-purpose zinc-plated screws suitable for securing brackets, equipment and fixings during drinks dispense, cellar and general installation work.

Measuring 5.0 x 40mm (No. 10 x 1.5"), the screws feature a PZ2 Pozi drive, double countersunk head and 60° twin-thread design for quick and secure installation.

Suitable for direct fixing into compatible softwood or for masonry applications when used with an appropriate plastic wall plug.

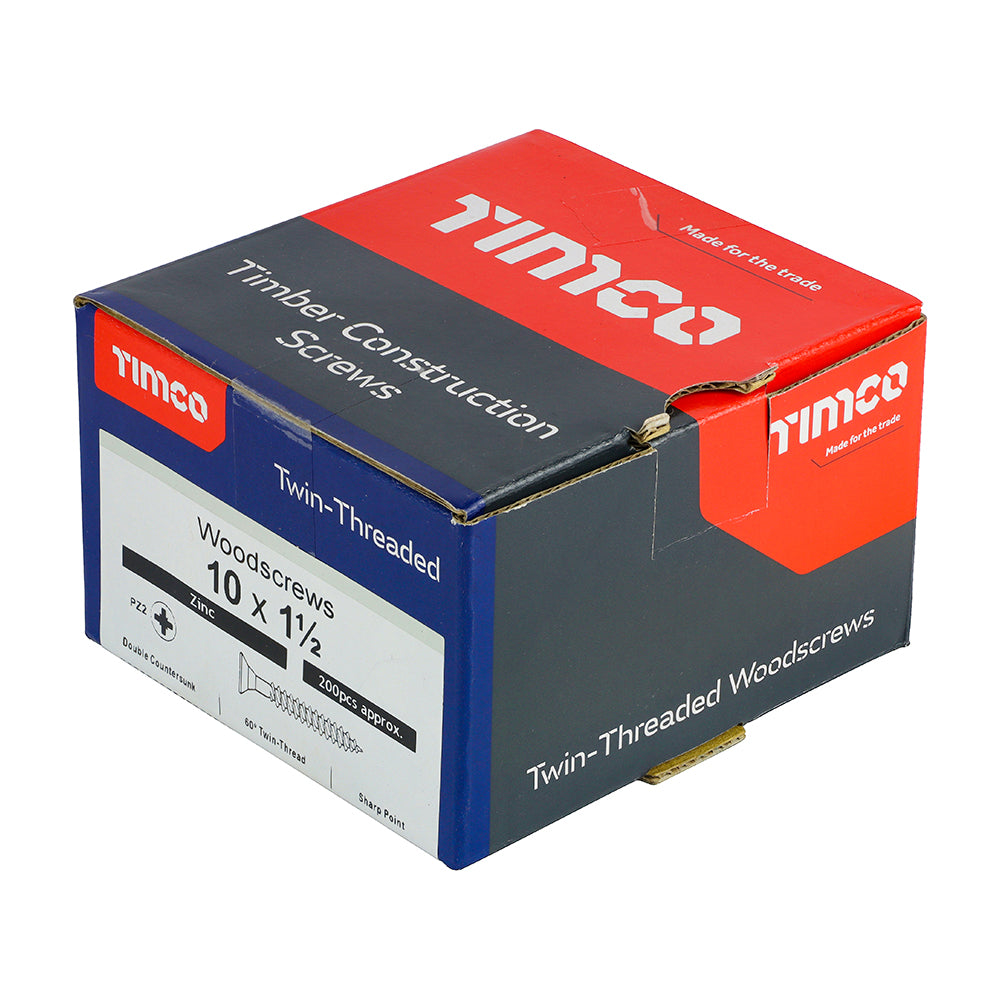

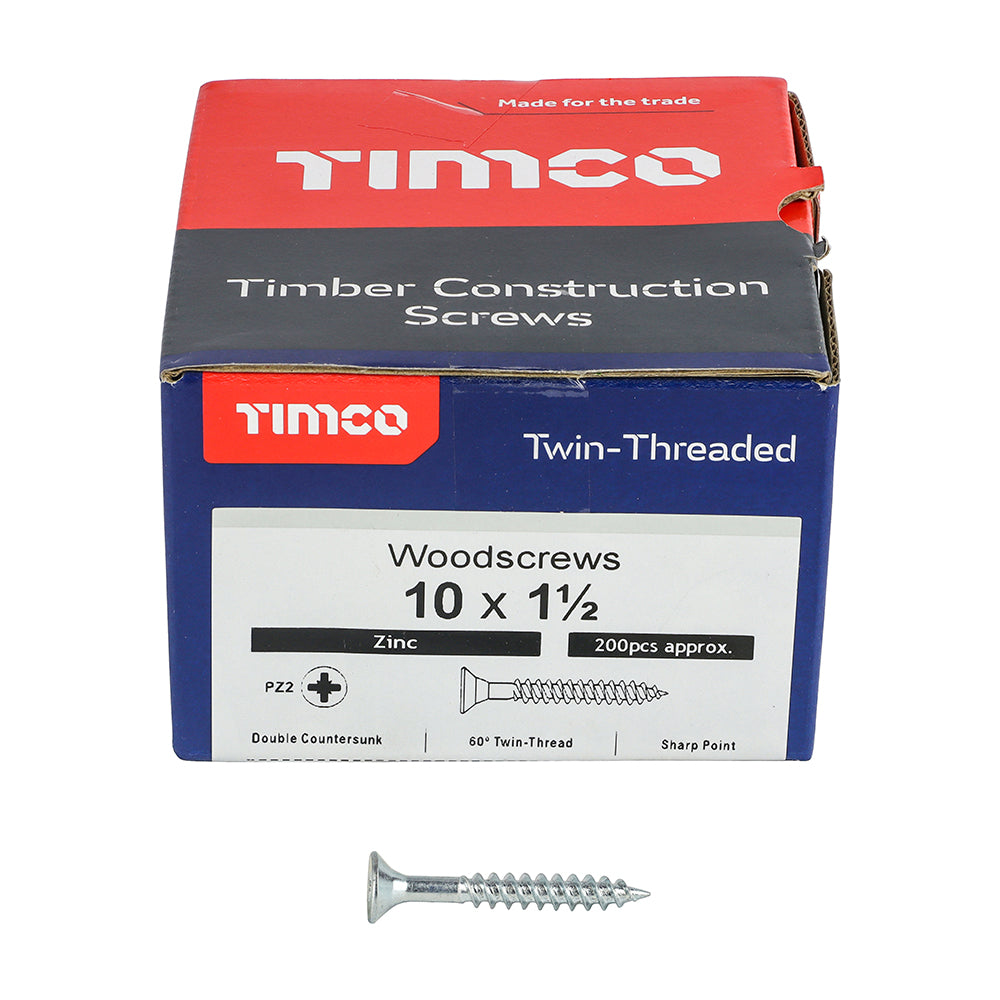

Supplied in a box of 200 screws.

1.5" x 10 Woodscrews for Drinks Dispense Installations

The additional length and diameter of these 5.0 x 40mm woodscrews make them useful for securing larger brackets and compatible wall mounted equipment.

Typical drinks dispense applications can include:

• Gas regulator brackets
• Gas bottle restraint brackets
• Beer cooler components
• Cleaning system equipment
• Pipework brackets
• Beer python supports
• Cellar equipment
• Wall mounted accessories
• General installation equipment

Always select the correct screw, wall plug and fixing method for the substrate and load being supported.

Key Features

• No. 10 x 1.5" woodscrews
• Metric size: 5.0 x 40mm
• 60° twin-thread design
• Partially threaded
• PZ2 Pozi drive
• Double countersunk head
• Sharp 25° point
• C10-18 carbon steel construction
• Surface and core hardened
• Zinc-plated finish
• Suitable for compatible softwood
• Can be used with suitable plastic wall plugs for masonry
• Supplied in a box of 200

Twin-Thread Design

The screws feature 60° twin threads, providing quick insertion and secure engagement with suitable materials.

The sharp 25° point helps the screw start cleanly when driven into compatible timber and other appropriate materials.

Partially Threaded

These 1.5" x 10 screws are partially threaded, leaving an unthreaded section beneath the head.

This design can be useful where two compatible timber components need to be pulled together securely as the screw is tightened.

Double Countersunk Head

The double countersunk head is designed to sit neatly into compatible brackets, fittings and timber while helping reduce stress around the screw head during installation.

A standard PZ2 Pozi recess allows installation using a compatible screwdriver or driver bit.

Zinc-Plated Carbon Steel

Manufactured from C10-18 carbon steel, the screws are surface and core hardened to provide strength while maintaining suitable ductility.

The zinc-plated finish provides basic corrosion protection for clean, dry and low-humidity environments.

For damp cellars, outdoor installations or areas regularly exposed to moisture, a suitable stainless steel or more corrosion-resistant fixing may be required.

Suitable for Masonry with Wall Plugs

These 5.0mm diameter screws can also be used with appropriately sized plastic wall plugs for fixing brackets and equipment to suitable masonry.

The wall plug, screw length and fixing method should always be selected according to the substrate and weight of the equipment being supported.

Heavier equipment may require specialist fixings.

Suitable For

These 1.5" x 10 twin-threaded woodscrews are suitable for:

• Drinks dispense installations
• Pub and bar cellars
• Gas regulator brackets
• Gas bottle restraint brackets
• Beer line and python supports
• Wall mounted cleaning equipment
• Breweries
• Plumbing installations
• Electrical installation work
• General maintenance
• Timber installations
• Compatible masonry fixings with wall plugs

Specifications

• Product: Twin-Threaded Woodscrew
• Imperial Size: No. 10 x 1.5"
• Metric Size: 5.0 x 40mm
• Material: C10-18 Carbon Steel
• Finish: Zinc Plated
• Thread: 60° Twin Thread
• Threading: Partially Threaded
• Drive: Pozi PZ2
• Head: Double Countersunk
• Head Diameter: 9.54mm
• Inner Thread Diameter: 3.25mm
• Point: 25° Sharp Point
• Pack Quantity: 200
