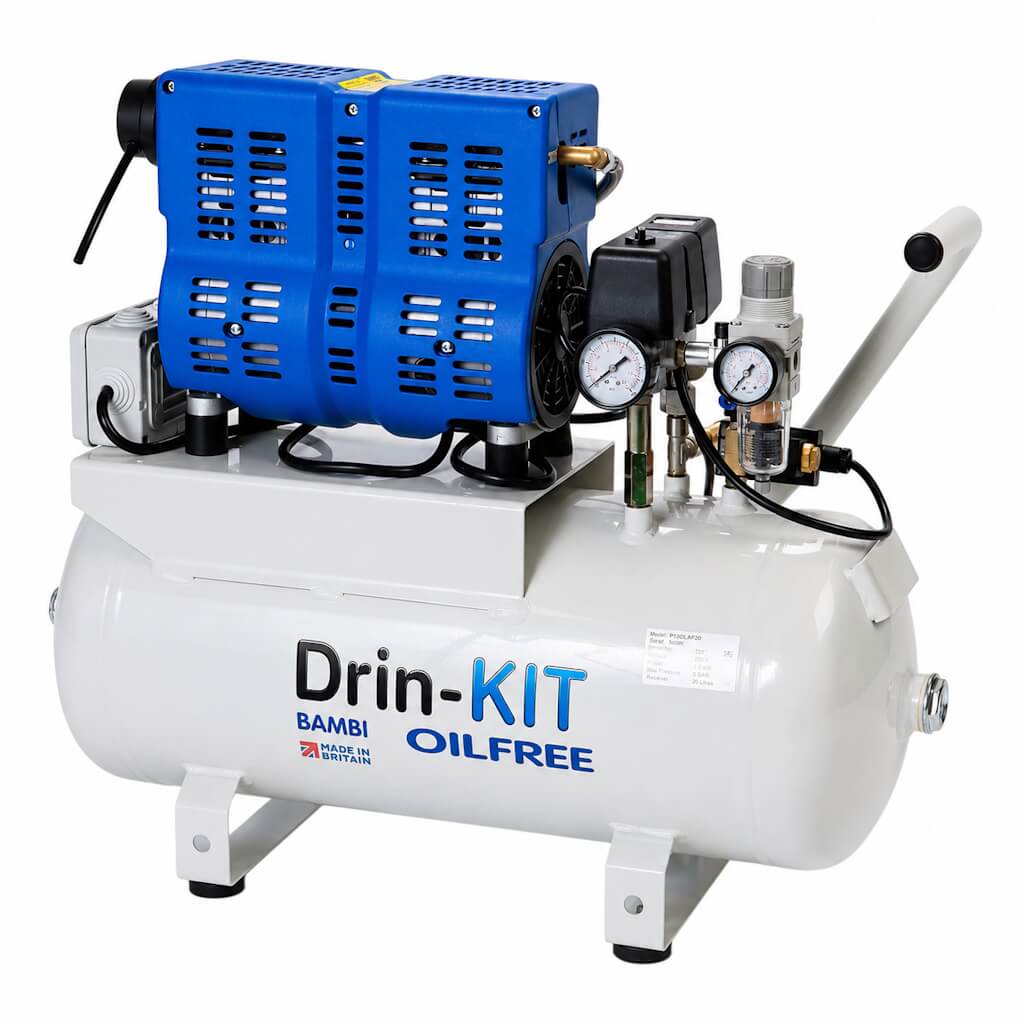

Bambi PTH24 Oil-Free Beverage Air Compressor

The Bambi PTH24 beverage air compressor supplies clean, oil-free compressed air for operating beer pumps and other compatible drinks dispense equipment. Delivering 75 litres per minute at 5 bar, it is suitable for pubs, bars, breweries, taprooms, mobile bars and commercial cellar installations.

Designed and manufactured in Britain, the PTH24 combines a 24-litre internally coated receiver, 10-micron filter regulator and automatic condensate drain in a compact unit.

Important: Compressed air should only be used to power compatible pneumatic dispense equipment. It must not come into direct contact with the drink or be used to pressurise a keg unless the system has been specifically designed and approved for that purpose.

Key Features

• Oil-free compressor pump
• 24-litre internally coated air receiver
• Free air delivery of 75L/min at 5 bar
• Maximum pressure of 8 bar
• Integrated 10-micron filter regulator
• Automatic condensate drain
• Condor pressure switch
• Built-in hour meter
• Pressure gauges included
• Supplied with a UK three-pin plug
• Designed, manufactured and tested in Britain
• One-year manufacturer’s warranty
• Five-year air-receiver warranty

Suitable Applications

The PTH24 can be used with compatible:

• Air-powered beer pumps
• Draught drinks dispense systems
• Cellar equipment
• Brewery and drinks-production equipment
• Filling and kegging systems
• Pneumatic valves and actuators
• Beverage mixing panels

Always confirm the required airflow and operating pressure of your equipment before ordering.

Technical Specifications

Wall-Mounting Option

A wall-mounting bracket for the Bambi PTH24 is available separately. Mounting the compressor off the floor can help free up space in a busy cellar.

Wall-mounting bracket not included.

What’s Included

• Bambi PTH24 oil-free air compressor
• 24-litre air receiver
• Integrated 10-micron filter regulator
• Pressure gauges
• Automatic condensate drain
• UK power lead

The compressor should be installed in accordance with the manufacturer’s instructions and all applicable cellar and workplace safety requirements.
