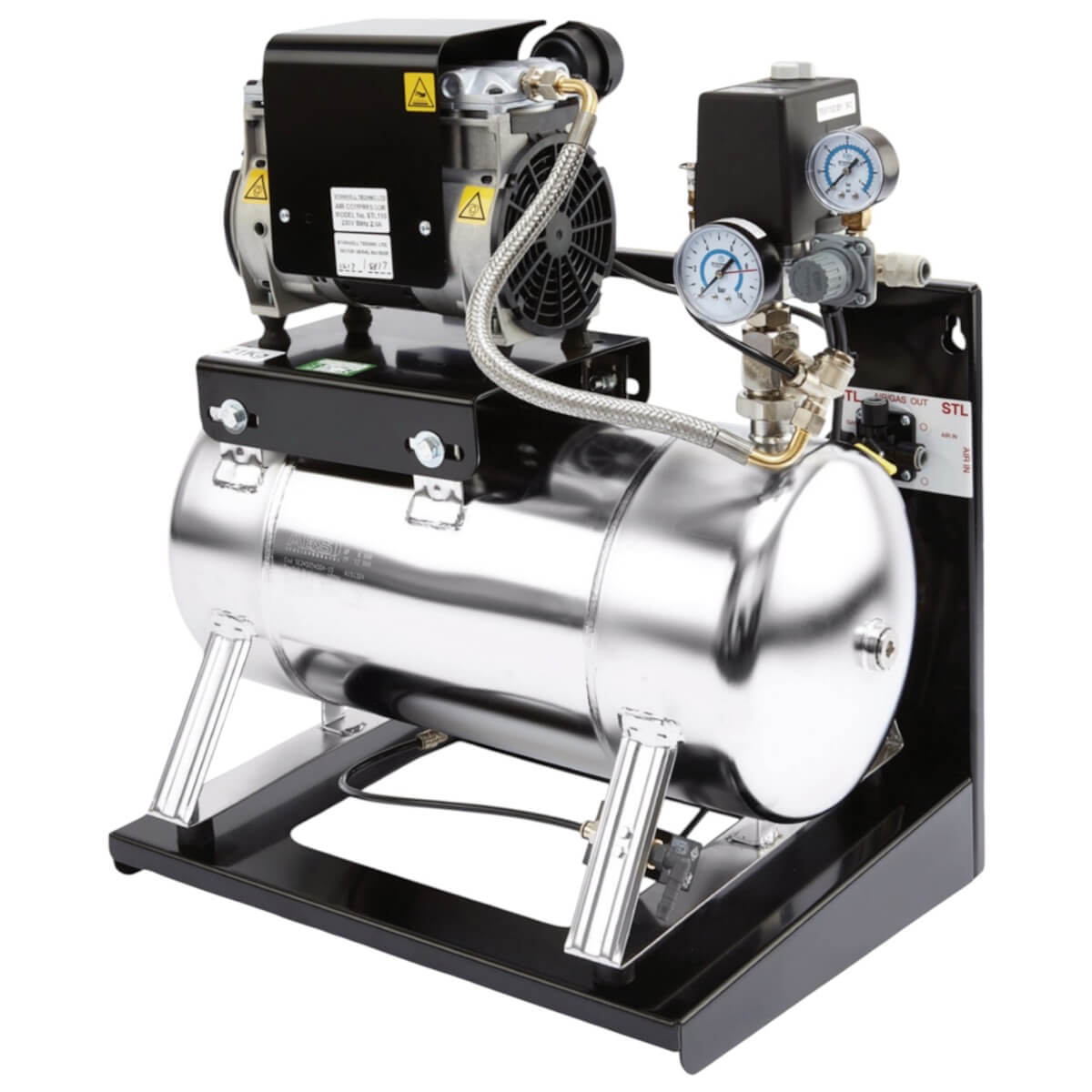

Air Compressor | STL 110 Oil Free

The STL 110 Oil-Free Air Compressor is a compact, high-performance solution designed for hygienic, maintenance-sensitive applications across the beverage, medical, and food service industries. Built with a durable stainless steel AISI 304 receiver and engineered for oil-free operation, it delivers clean, dry air—ideal for powering up to 16 beer pumps or 20 soft drink pumps in bars, pubs, restaurants, and other high-demand environments.

This lightweight unit (just 25 kg assembled) offers energy-efficient performance, a rapid 30-second recharge time, and fail-safe overload protection with a thermal cut-out for added peace of mind. Manufactured under ISO 9001/2000 standards, the STL 110 ensures consistent quality and reliability.

🔧 Please Note: The wall mounting bracket is sold separately and is not included with this unit.

Key Features:

Oil-Free Operation – Perfect for hygiene-critical and low-maintenance environments

Stainless Steel Receiver (AISI 304) – Corrosion-resistant and robust

Automatic Condensate Removal – Keeps performance clean and efficient

Lightweight Design – Easy to handle, install, or relocate

Fail-Safe Overload Protection – Thermal cut-out for winding protection

Energy Efficient – Low power consumption at 0.80 kW

Quiet Performance – Operates at just 55–58 dB(A)

Technical Specifications:

Power Supply: 230V (-6% / +10%)

Start Current: 19 Amps

Run Current: 3.9 Amps

Free Air Delivery (at 0 Bar): 137 L/min

Nominal Operating Pressure: 7 Bar

Duty Cycle: Continuous at 7 Bar

Receiver Volume: 24 Litres

Air Outlet: 3/8" Push Fit

Recharge Time: ~30 Seconds (from 4.5 to 7 Bar)

Max Ambient Temperature: 40°C

Sound Pressure Level: 55–58 dB(A)

Protection Class: IP23, F Class Windings

Compliance & Certifications:

PED 97/23/CE

Machinery Directive 98/37/EC

ISO 9001/2000 Certified
