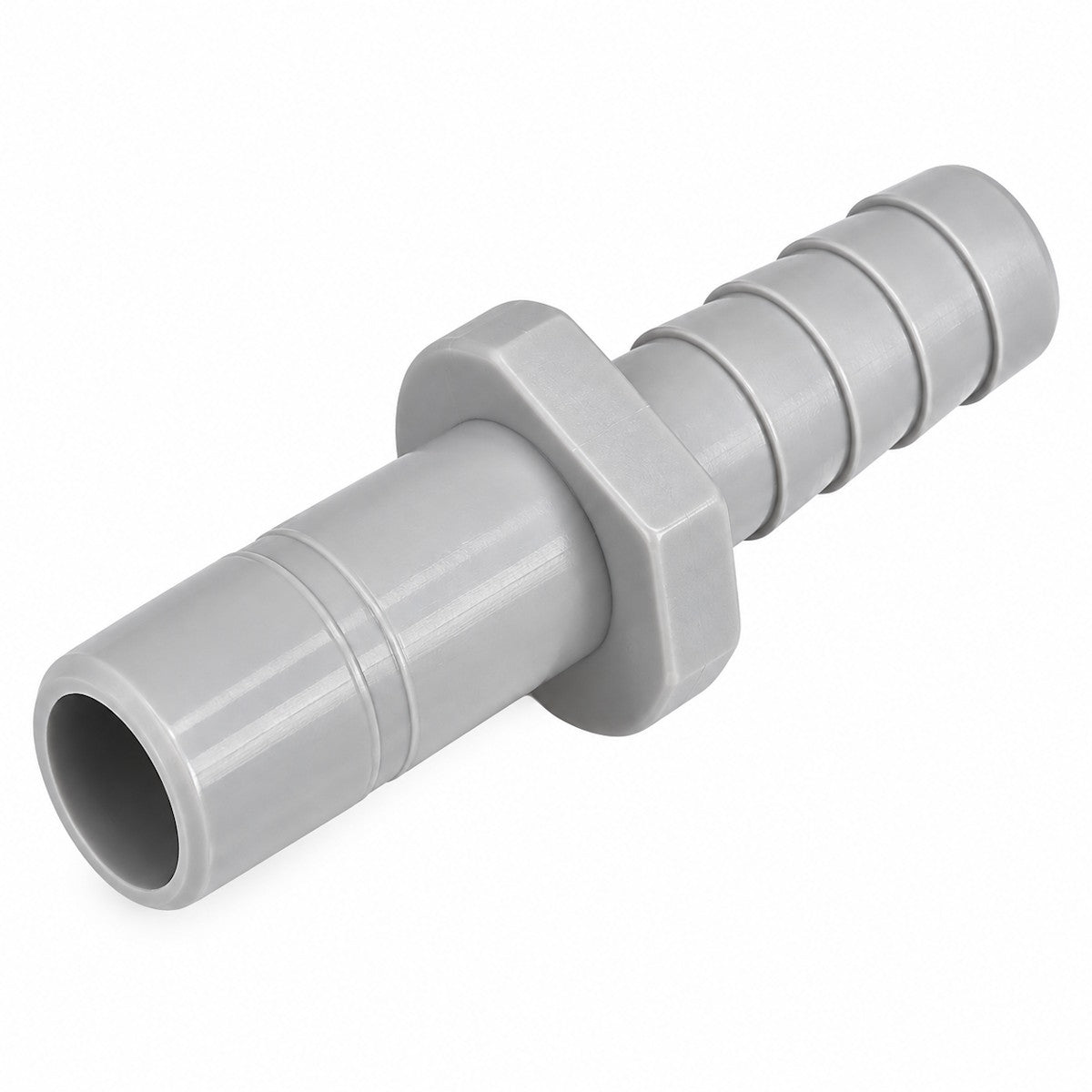

DMfit ATBC0707 1/2″ Push-Fit to 1/2″ Hose Stem Adaptor – 10 Pack

1/2″ Push-Fit to 1/2″ Hose Tail for Drinks Dispense Systems

The DMfit ATBC0707 1/2″ Tube Barb Connector is designed to connect 1/2″ OD rigid pipe to compatible 1/2″ ID flexible hose. It provides a direct transition between push-fit pipework and flexible hose in draught beer, beverage, water and other compatible fluid systems.

One end features a 1/2″ push-fit connection, while the opposite end has a 1/2″ barbed hose stem, also commonly referred to as a hose tail.

Supplied as a pack of 10 DMfit ATBC0707 connectors.

DMfit 1/2″ Tube Barb Connector

The ATBC0707 combines a push-fit pipe connection and barbed hose connection in a single fitting.

The 1/2″ push-fit socket accepts compatible 1/2″ OD rigid tubing, while the 1/2″ hose barb is designed to fit inside compatible 1/2″ ID flexible hose.

This makes it particularly useful where rigid beverage pipework needs to connect directly to equipment using flexible hose.

Key Features

• Genuine DMfit ATBC0707
• 1/2″ push-fit x 1/2″ hose barb
• Also known as a tube barb connector or hose stem adaptor
• Connects rigid pipe to flexible hose
• Accepts compatible 1/2″ OD pipe
• Barbed stem for compatible 1/2″ ID flexible hose
• Push-fit installation on the tube side
• Acetal construction
• Suitable for compatible drinks dispense systems
• Useful for equipment connections and pipework conversions
• Supplied as a pack of 10

Suitable For

Common applications include:

• Draught beer systems
• Cask ale dispense equipment
• Beverage dispense systems
• Beer and cider pipework
• Beer coolers
• Cellar equipment
• Brewery installations
• Water systems
• Mobile bar equipment
• Rigid pipe to flexible hose connections

Connection Sizes

• DMfit Part Number: ATBC0707
• Push-Fit Connection: 1/2″
• Compatible Rigid Pipe: 1/2″ OD
• Hose Barb: 1/2″
• Compatible Flexible Hose: 1/2″ ID
• Type: Tube Barb Connector
• Material: Acetal
• Manufacturer: DMfit
• Quantity: 10

Installation

Cut the 1/2″ OD pipe cleanly and square before pushing it fully into the push-fit side of the connector.

Push compatible 1/2″ ID flexible hose fully over the barbed stem and secure with a suitable hose clip where required for the application.

Always check that the fitting, pipe, hose and securing method are suitable for the intended fluid, pressure and operating temperature.
