Stainless Steel Equal Barbed Straight Splicer – 1/4″, 3/8″ and 1/2″
Stainless Steel Equal Barbed Straight Splicer – 1/4″, 3/8″ and 1/2″
Product Code
SKU:SSS0404
Nicht vorrätig
Verfügbarkeit für Abholungen konnte nicht geladen werden

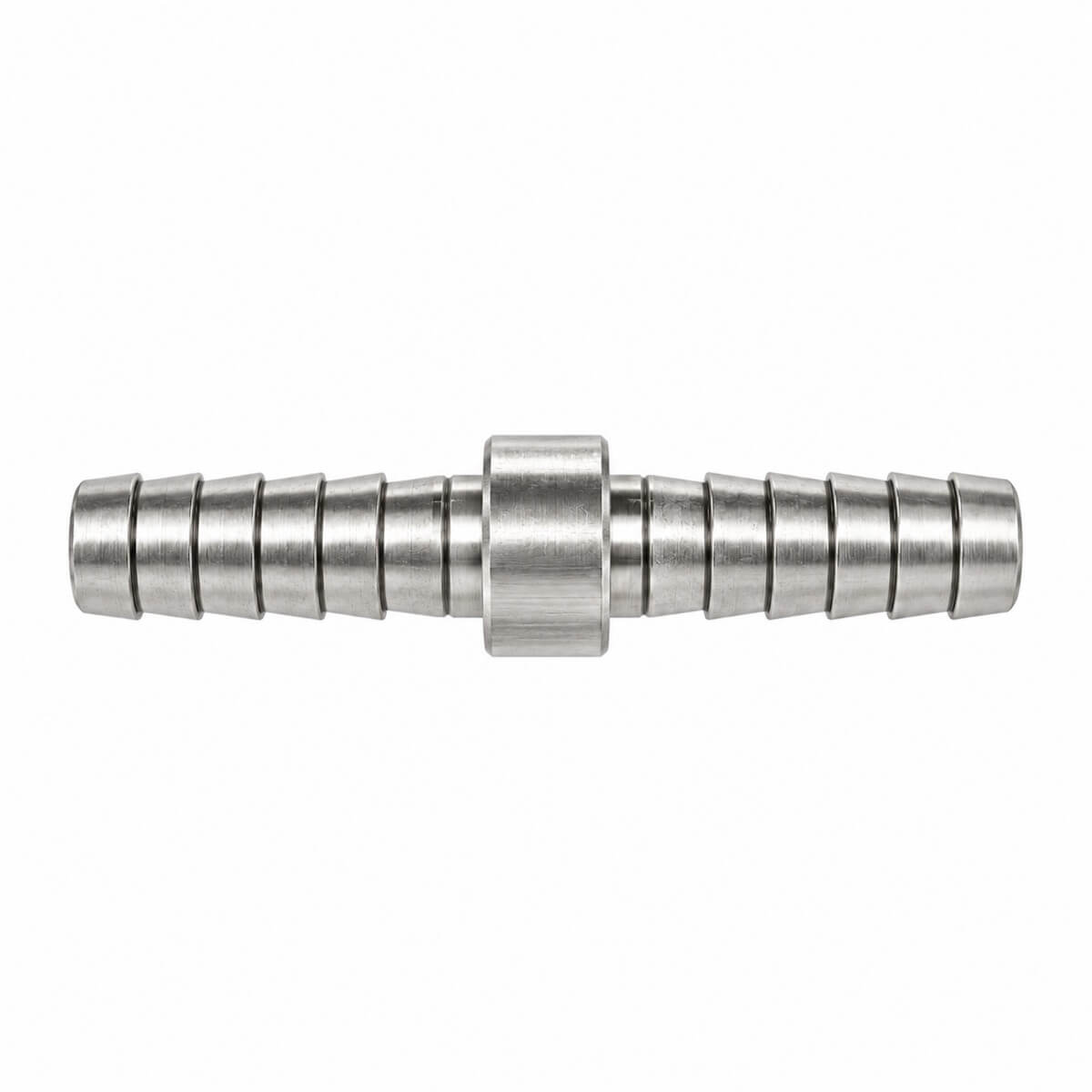

Stainless Steel Equal Barbed Straight Splicer
Join two lengths of compatible tubing in a straight line with this stainless steel barbed splicer. Its equal-sized barbs connect tubing of the same size, making it suitable for compatible beverage dispense and soft drinks systems.
Choose from three sizes: 1/4″, 3/8″ or 1/2″. Check the part number and overall length below to select the right fitting.
Sizes and Dimensions
| Part number | Barb size | Length |
|---|---|---|
| SSS0404 | 1/4″ / 7.24 mm | 1.75″ / 44.50 mm |
| SSS0606 | 3/8″ / 9.96 mm | 1.62″ / 41.10 mm |
| SSS0707 | 1/2″ / 13.51 mm | 1.80″ / 45.70 mm |
Stainless Steel Construction
The stainless steel fitting range uses a combination of grades 303 and 304. Grade 303 is certified to ASTM A581/A582 or AMS 5640; grade 304 is certified to ASTM A479 or AMS 5639. Where tubing is used, it is 304 stainless steel certified to ASTM A269. The fittings are passivated to ASTM A967.
