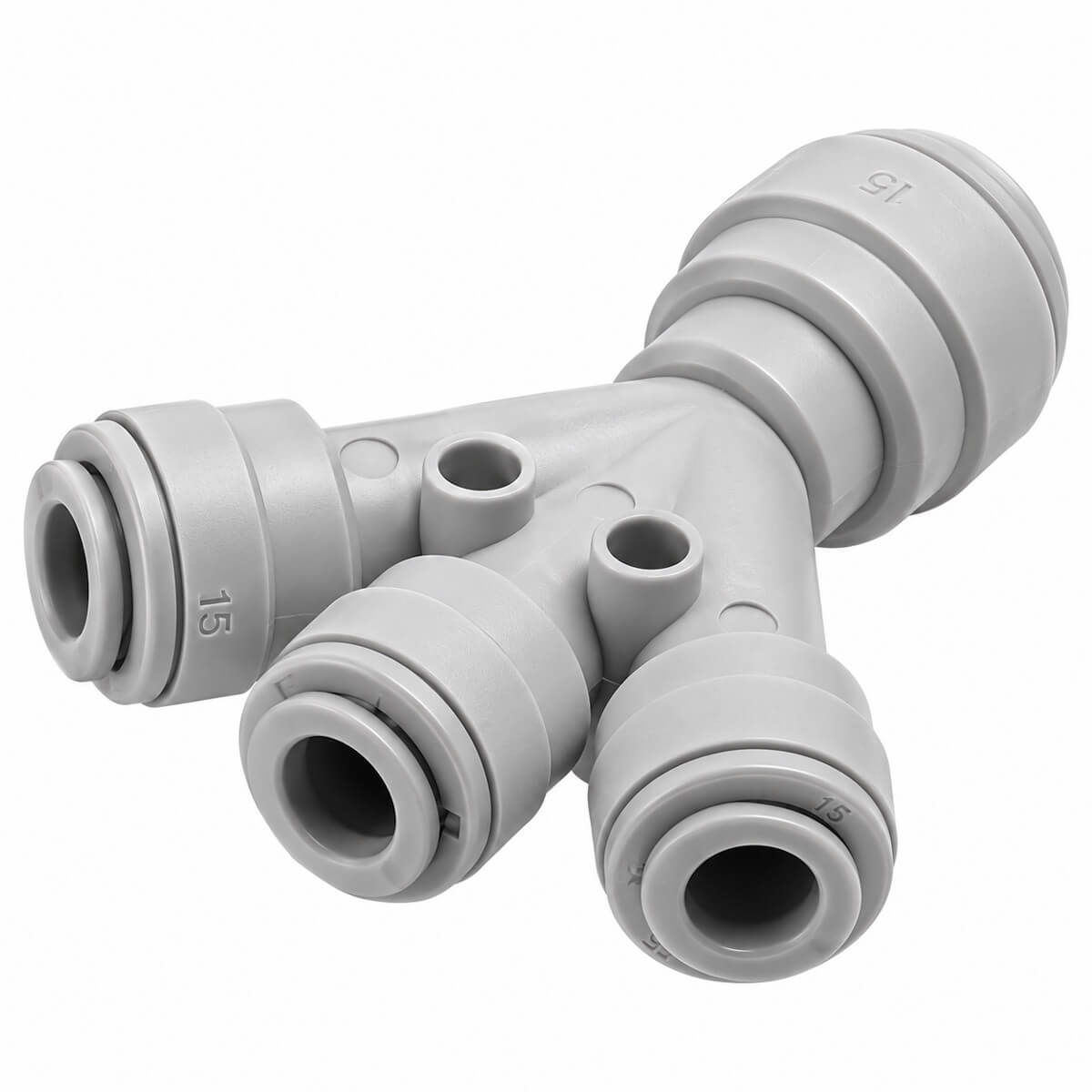

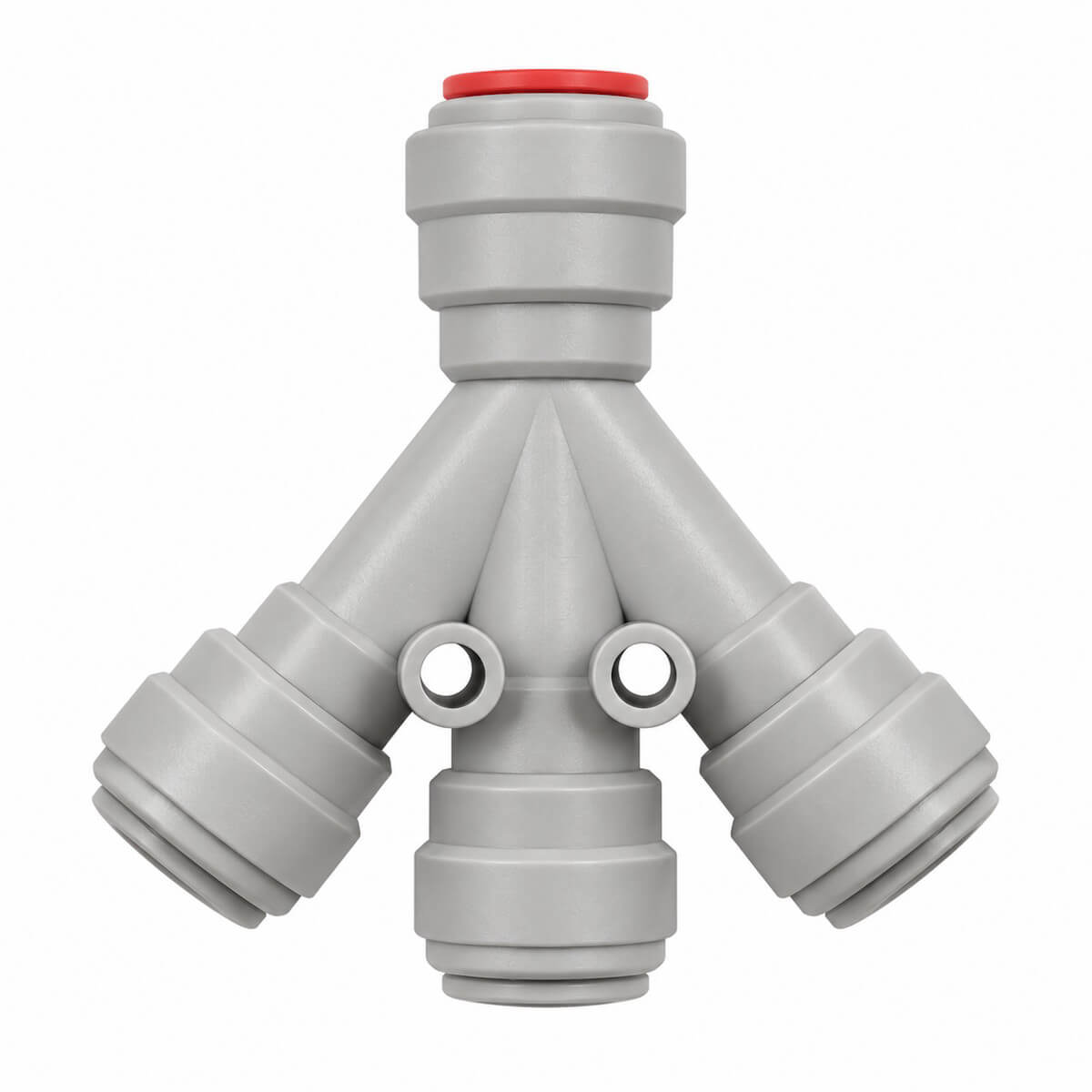

DMfit ATHWD0606 3/8″ Three-Way Divider – 10 Pack

3/8″ Push-Fit Three-Way Divider for Drinks Dispense Systems

The DMfit ATHWD0606 3/8″ Three-Way Divider is a push-fit connector designed to split one 3/8″ pipe supply into three separate 3/8″ outlets. It provides a compact way to distribute beer, beverage, gas, compressed air or other compatible fluids to multiple lines.

All four connections are 3/8″ push fit, allowing compatible 3/8″ OD pipe to connect directly to the fitting without conventional hose tails or hose clips.

Supplied as a pack of 10 DMfit ATHWD0606 Three-Way Dividers.

DMfit 3/8″ Three-Way Push-Fit Divider

The ATHWD0606 features one main 3/8″ connection feeding three 3/8″ branches. This makes it useful where a single supply needs to be distributed across multiple pieces of equipment or dispense lines.

The push-fit connections are demountable, allowing pipework to be disconnected when servicing or altering the installation.

Key Features

• Genuine DMfit ATHWD0606
• 3/8″ Three-Way Divider
• One 3/8″ main connection
• Three 3/8″ branch connections
• Four 3/8″ push-fit ports in total
• Accepts compatible 3/8″ OD pipe
• Splits one supply into three lines
• Push-fit installation
• Demountable connections
• Acetal construction
• Suitable for compatible beverage pipework
• Suitable for compatible gas and compressed air systems
• Supplied as a pack of 10

Suitable For

The 3/8″ Three-Way Divider can be used in compatible systems including:

• Draught beer and cider systems
• Beverage dispense equipment
• Beer product lines
• CO2 gas lines
• Mixed gas lines
• Compressed air pipework
• Keg dispense systems
• Beer coolers and dispensers
• Brewery installations
• Mobile bars
• Pub and bar cellar equipment

Connection Sizes

• DMfit Part Number: ATHWD0606
• Main Connection: 3/8″ push-fit
• Outlet 1: 3/8″ push-fit
• Outlet 2: 3/8″ push-fit
• Outlet 3: 3/8″ push-fit
• Compatible Pipe: 3/8″ OD
• Type: Three-Way Divider / Splitter
• Material: Acetal
• Manufacturer: DMfit
• Quantity: 10

Splitting a 3/8″ Supply into Three Lines

The DMfit ATHWD0606 is particularly useful where a single 3/8″ supply needs to feed three separate lines.

For example, it can be used within a compatible drinks dispense installation to distribute a gas or compressed air supply. The actual pressure and flow available to each branch will depend on the complete system configuration and equipment requirements.

Installation

Cut compatible 3/8″ OD pipe cleanly and square before pushing it fully into each required connection.

To disconnect the pipe, depress the collet and withdraw the tubing.

Always check that the fitting and pipework are suitable for the intended beverage, gas, air or fluid, together with the required operating pressure and temperature.
