Stanwell
Stanwell STL 110 Oil-Free Beverage Air Compressor – 24 Litre
Stanwell STL 110 Oil-Free Beverage Air Compressor – 24 Litre
Product Code
SKU:STL110
No se pudo cargar la disponibilidad de retiro

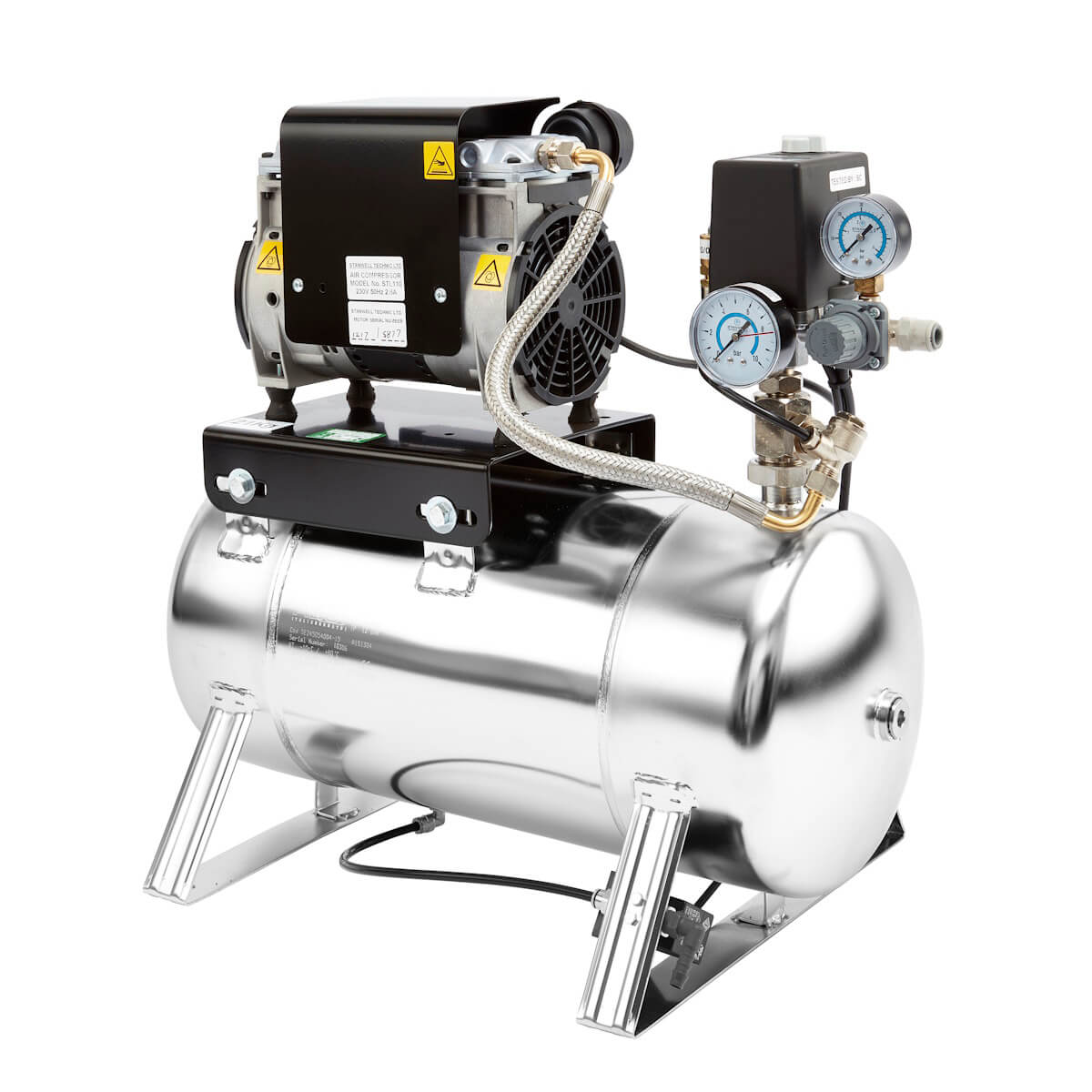

Stanwell STL 110 Oil-Free Beverage Air Compressor
The Stanwell STL 110 beverage air compressor provides a reliable supply of oil-free compressed air for operating beer pumps, soft-drink pumps and other compatible pneumatic dispense equipment.
With a 24-litre AISI 304 stainless steel receiver and free air delivery of up to 137 litres per minute, it can power up to 16 beer pumps or 20 soft-drink pumps when correctly specified and installed.
It is suitable for larger pubs, bars, restaurants, stadium bars, event venues and commercial drinks-dispense installations requiring a central compressed-air supply.
Important: Compressed air should only be used to power compatible pneumatic equipment. It must not come into direct contact with the drink or pressurise a keg unless the system is specifically designed and approved for that purpose.
Key Features
- Oil-free compressor for drinks-dispense systems
- Powers up to 16 compatible beer pumps
- Powers up to 20 compatible soft-drink pumps
- 137L/min free air delivery at 0 bar
- Nominal operating pressure of 7 bar
- 24-litre AISI 304 stainless steel receiver
- 3/8-inch push-fit air outlet
- Automatic condensate removal
- Approximately 30-second recharge from 4.5 to 7 bar
- Thermal cut-out protection
- Continuous duty at 7 bar
- Operating noise of approximately 55–58dB(A)
- Approximate assembled weight of 25kg
Actual pump capacity will depend on operating pressure, pipe runs, demand and the equipment connected.
Suitable Applications
The Stanwell STL 110 is suitable for operating compatible:
- Air-powered beer pumps
- Soft-drink pumps
- Cellar dispense equipment
- Pneumatic valves and actuators
- Beverage-production equipment
- Commercial drinks-dispense systems
Always confirm the required airflow and operating pressure before ordering.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Stanwell STL 110 |
| Compressor type | Oil-free |
| Power supply | 230V (-6%/+10%) |
| Power consumption | 0.80kW |
| Starting current | 19A |
| Running current | 3.9A |
| Free air delivery | 137L/min at 0 bar |
| Nominal operating pressure | 7 bar |
| Duty cycle | Continuous at 7 bar |
| Receiver capacity | 24 litres |
| Receiver material | AISI 304 stainless steel |
| Air outlet | 3/8-inch push fit |
| Recharge time | Approx. 30 seconds from 4.5 to 7 bar |
| Maximum ambient temperature | 40°C |
| Sound pressure level | 55–58dB(A) |
| Protection rating | IP23 |
| Motor windings | Class F |
| Assembled weight | Approx. 25kg |

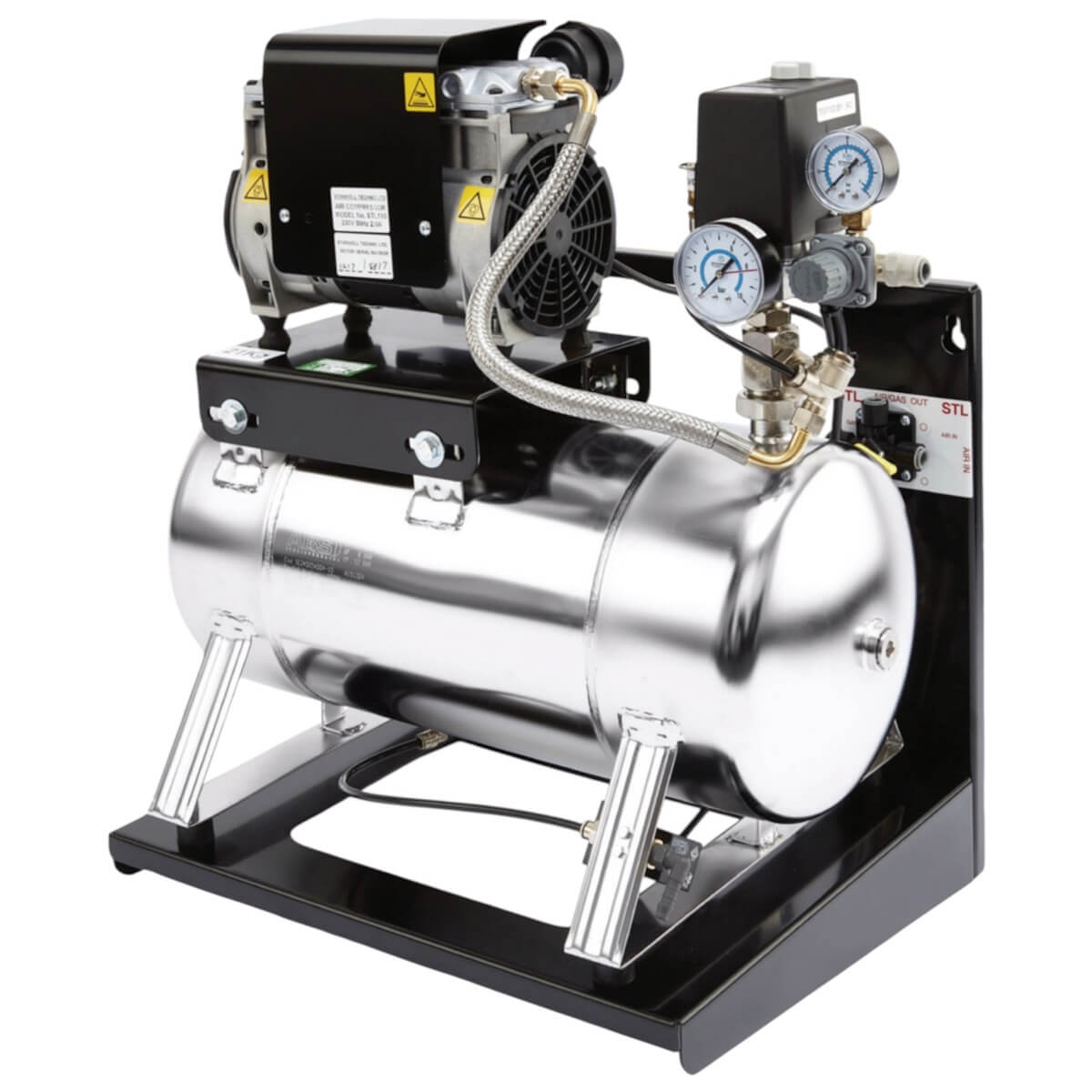

Optional Wall-Mounting Bracket
A dedicated Stanwell STL 110 wall-mounting bracket with changeover valve is available separately for installations where the compressor needs to be positioned off the cellar floor.
Please note: The wall-mounting bracket is not included with the compressor.
Compliance
Manufacturer documentation references applicable pressure-equipment, machinery and quality-management standards. Please contact us if you require current conformity documentation for your installation.
Delivery Information
Due to its size and weight, the Stanwell STL 110 air compressor is delivered by pallet. Additional delivery time or charges may apply to remote UK locations.
