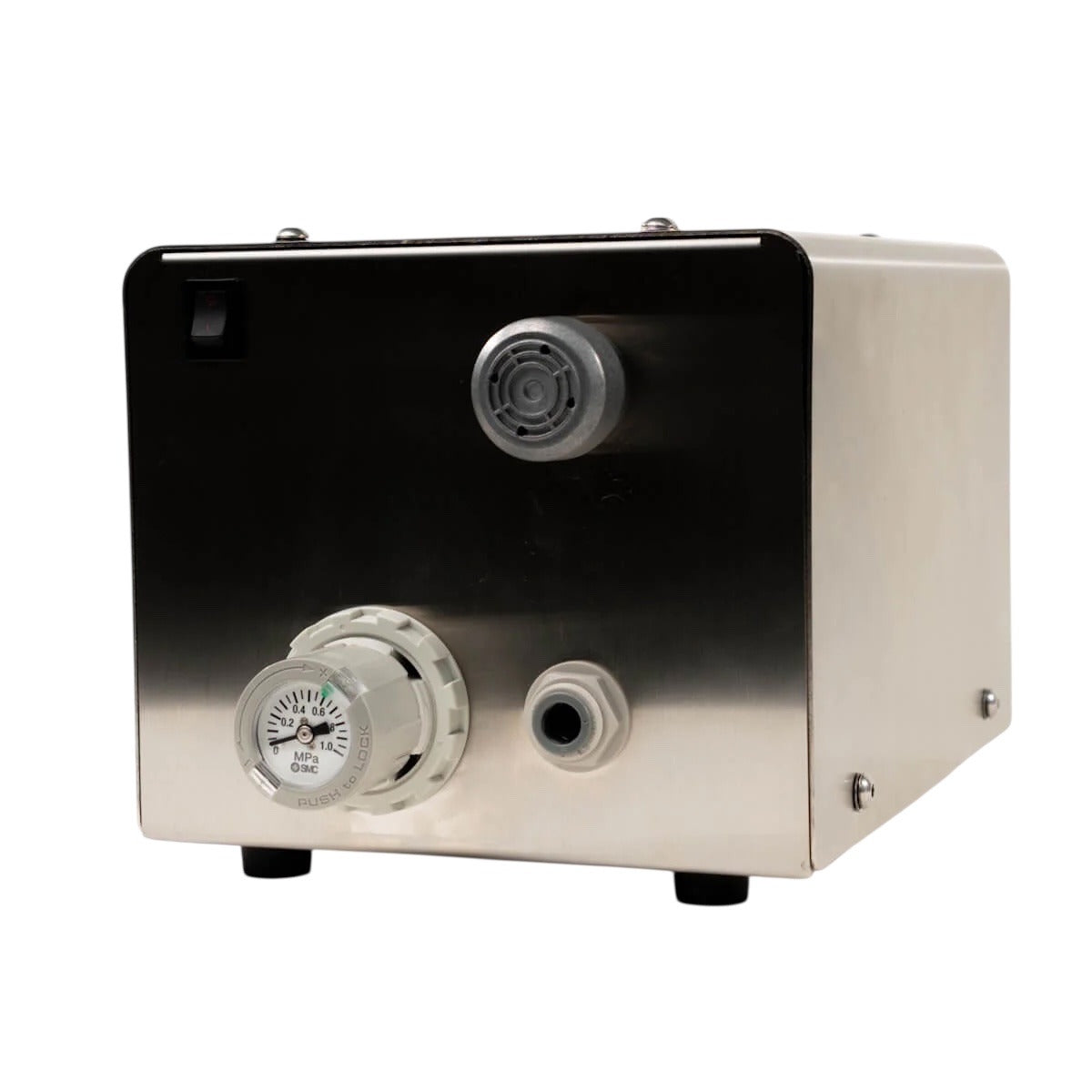

Stanwell STL35 Mini Air Compressor for Beverage Dispense

The Stanwell STL35 is a compact, oil-free air compressor for low-volume beverage dispense. It is suited to KeyKeg systems, BIB cocktails and small soft drink setups where a compact air supply is required.

Compact Oil-Free Compressor for Drinks Dispense

The STL35 uses a rocking piston pump and has a stainless steel casing. An adjustable pressure regulator and Condor MDR2 pressure switch provide control for beverage dispense applications.

An automatic run-time cut-out helps protect the compressor if it runs for too long, such as when a system leak is present. The compressor also has integrated thermal and overrun protection.

STL35 Mini Compressor Features

• Compact design; weighs 5.5 kg
• Oil-free rocking piston pump
• 7.5 L/min delivery at 3 bar
• Maximum pressure: 7 bar
• Adjustable regulator with built-in MPa manometer
• Condor MDR2 pressure switch
• Thermal and overrun protection
• UK and Euro plug options
• Suitable for KeyKeg, BIB cocktails and small soft drink systems

Specifications

• Model: Stanwell STL35
• Type: Oil-free mini air compressor
• Pump: Rocking piston
• Maximum pressure: 7 bar
• Air delivery: 7.5 L/min at 3 bar
• Weight: 5.5 kg
• Applications: KeyKeg, BIB cocktails and small soft drink dispense
