Glycol pump | Base pump for split remote cooler units

MMP-17 STAGE 3 Modular Glycol Circulation Pump | 230V

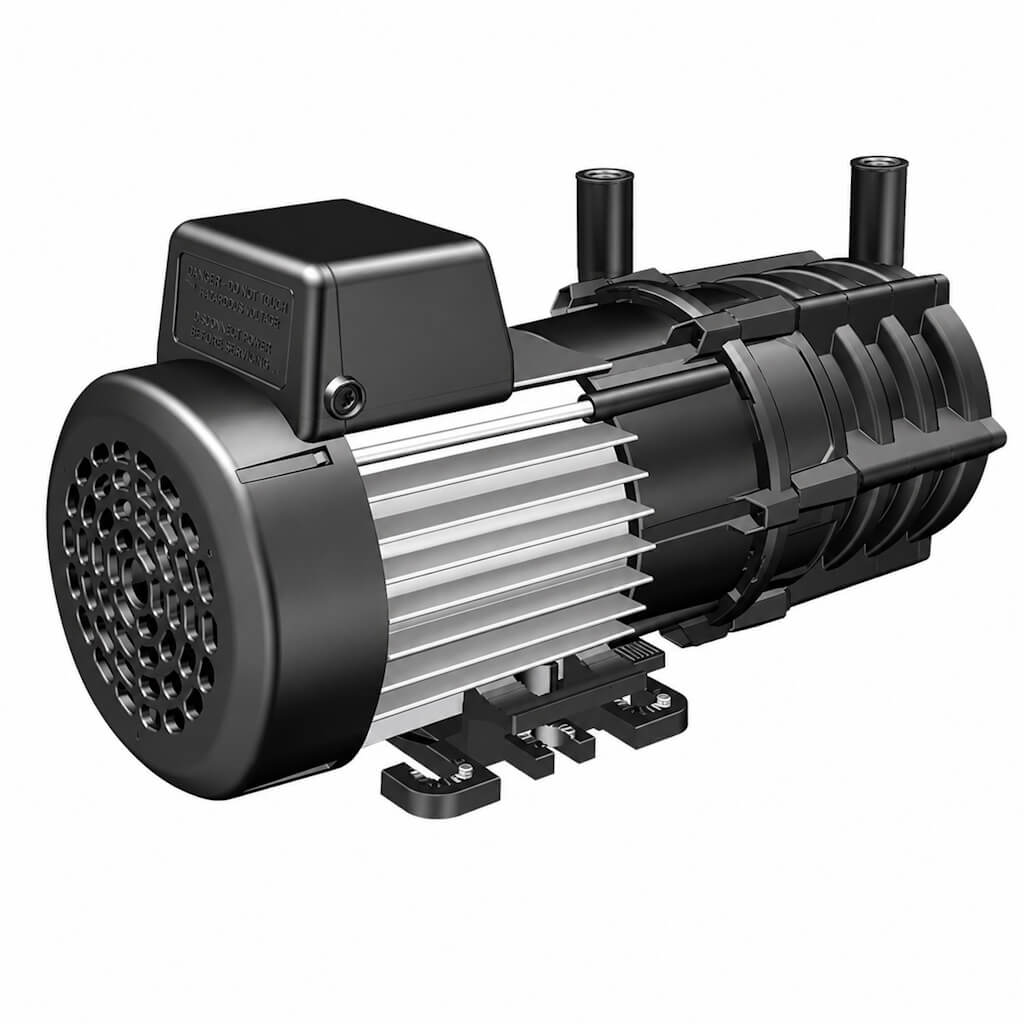

The MMP-17 STAGE 3 Glycol Pump is a high-performance magnetic drive circulation pump designed specifically for split remote beer coolers and long-distance glycol recirculation systems. Built with a robust modular design, this 230V pump delivers reliable coolant circulation to maintain consistent product temperatures across remote dispense installations.

Featuring a 150W single-phase motor and capable of producing up to 17 metres of head pressure with a maximum flow rate of 18.5 litres per minute, the MMP-17 is ideal for commercial pubs, bars, breweries, restaurants and beverage dispense systems where dependable glycol circulation is essential.

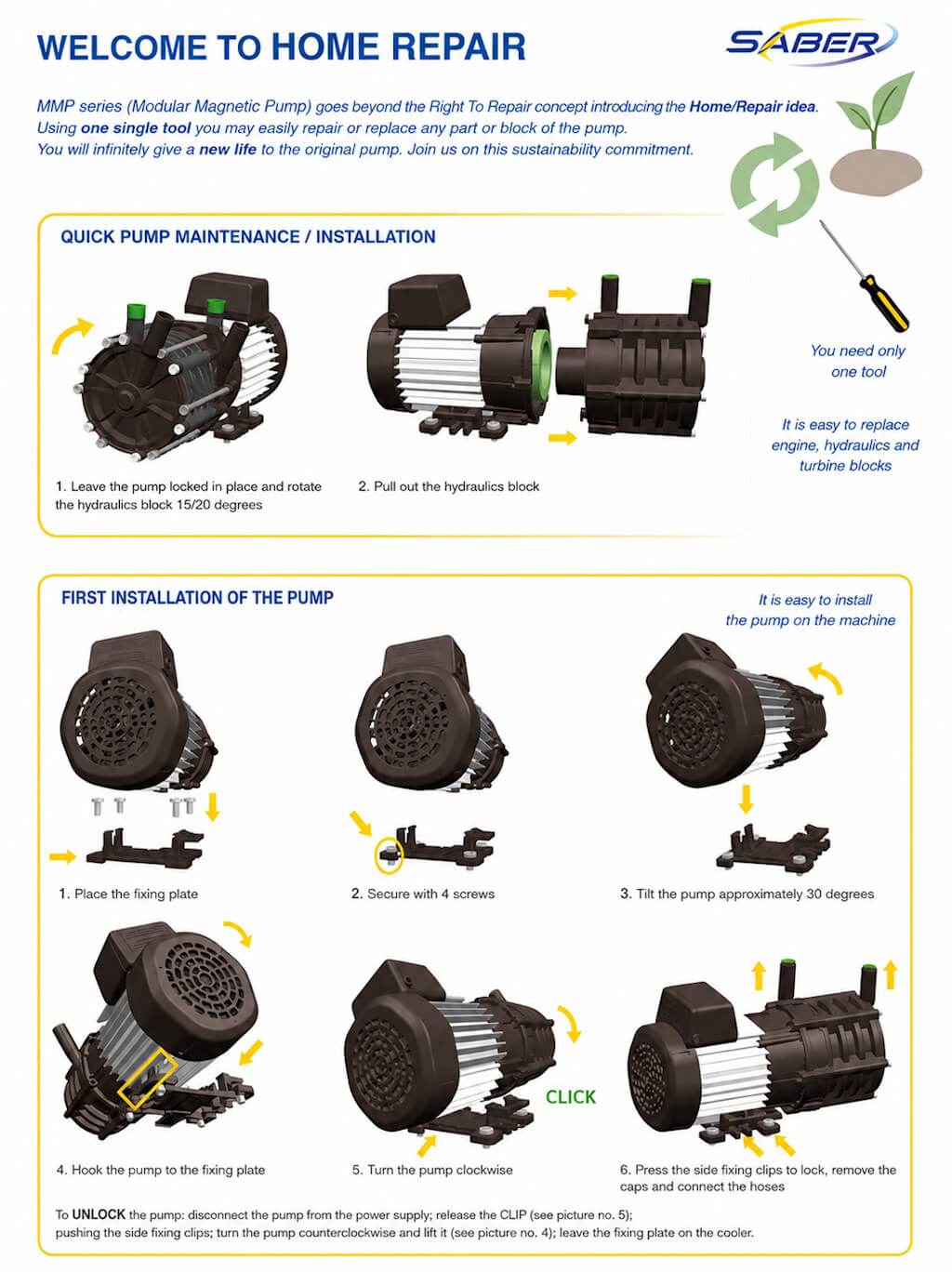

Unlike traditional pumps, the MMP series uses a magnetically coupled centrifugal design, eliminating shaft seals for improved reliability and reduced maintenance. Its innovative modular construction also allows the motor, hydraulic section and turbine assembly to be replaced independently, significantly reducing downtime and repair costs.

The aluminium motor housing provides excellent heat dissipation, while the pump features IP44 protection, built-in thermal overload protection and corrosion-resistant stainless steel components for long service life in demanding cellar environments.

Key Features

• Designed for split remote beer cooler glycol circulation
• Magnetically coupled centrifugal pump for reliable, leak-free operation
• Modular design allows individual component replacement
• 230V single-phase motor
• Built-in thermal overload protection
• Extruded aluminium motor housing
• Stainless steel shaft and corrosion-resistant fixings
• Air-cooled motor for continuous operation
• Preset swivel outlet with John Guest push-fit connections
• Suitable for continuous 24-hour operation
• Easy installation and servicing with modular fixing plate system

Technical Specifications

Performance figures are based on testing with clean water at 20°C.

Ideal For

• Split remote beer coolers
• Glycol recirculation systems
• Long python beer line installations
• Commercial bars and pubs
• Breweries
• Restaurants
• Mobile bar installations
• Beverage dispense systems

Important Information

• Not self-priming
• Must never be run dry
• Designed for continuous operation using clean glycol/water cooling circuits.
• Suitable for use in professional beverage dispense applications.

This MMP-17 Stage 3 Glycol Pump is the ideal replacement or upgrade for commercial remote cooling systems, offering excellent reliability, straightforward maintenance and consistent glycol circulation to keep draught beer dispensing at the correct temperature.
